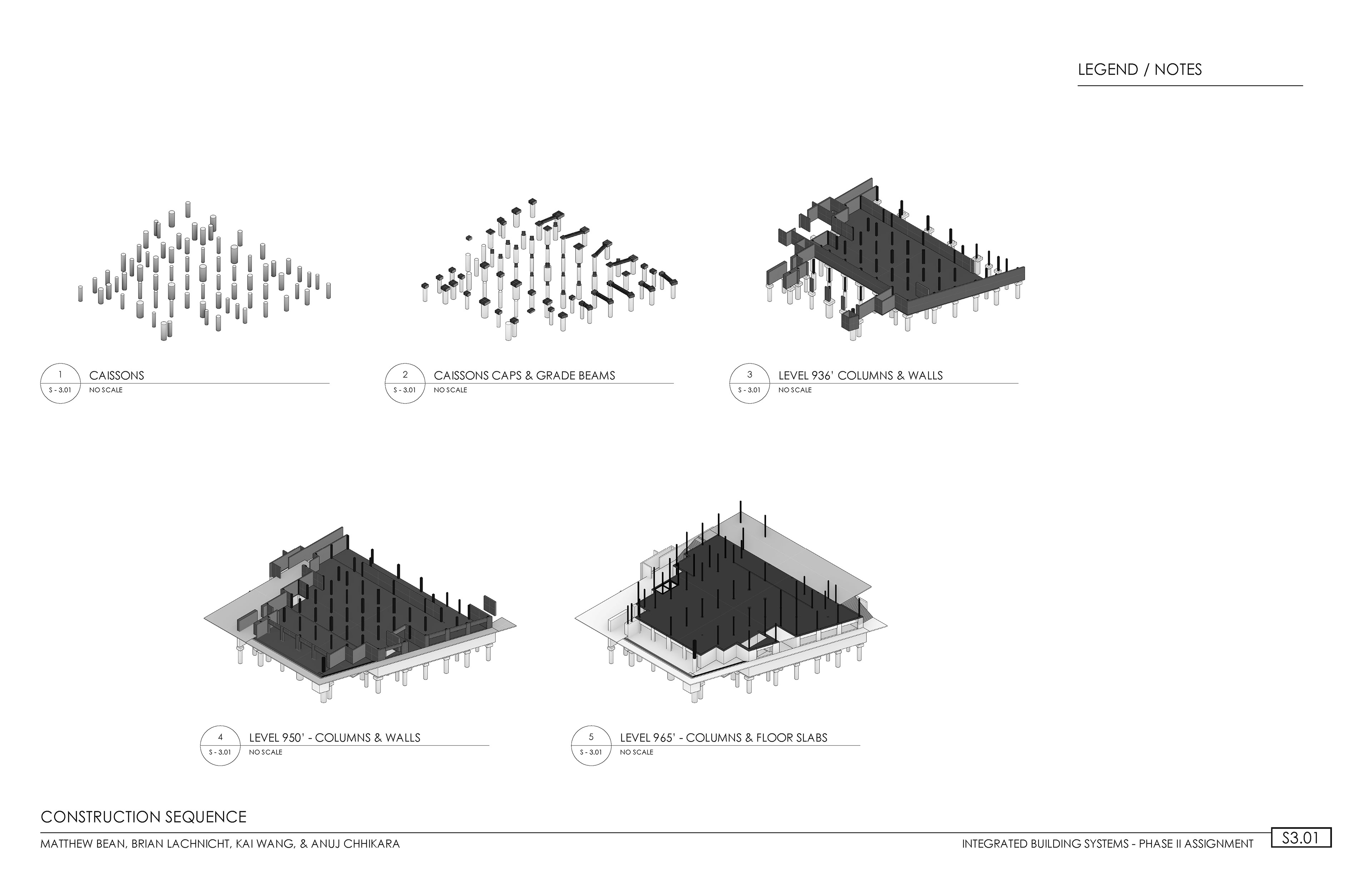

Through three separate submission phases, our team was responsible for reconstructing the high museum based on the provided construction documents. On top of constructing the model, we were tasked with understanding the various elements of construction and building systems such as foundations, steel truss and brace components, framing plans, construction sequences, building envelope, and detail connections.

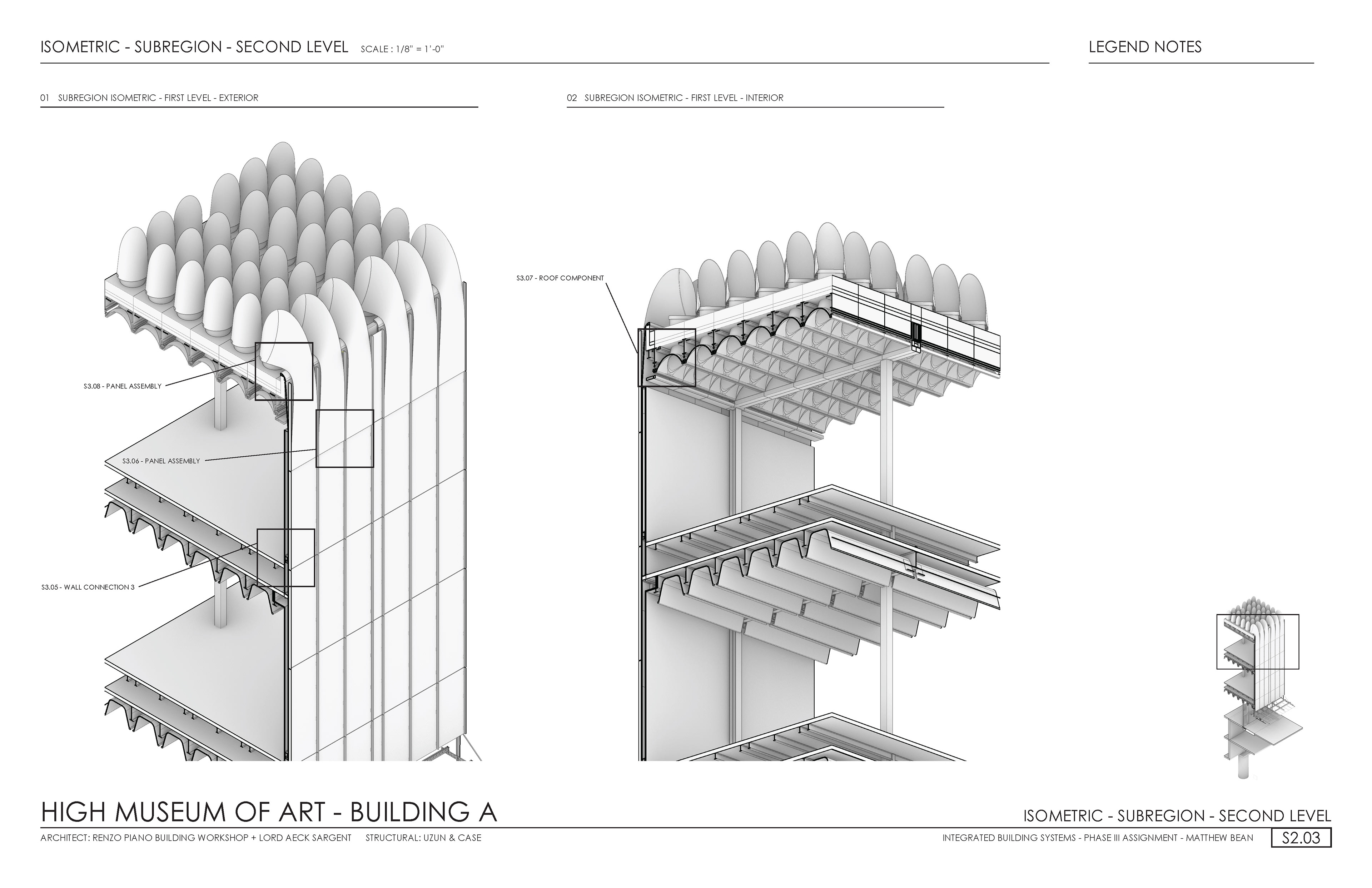

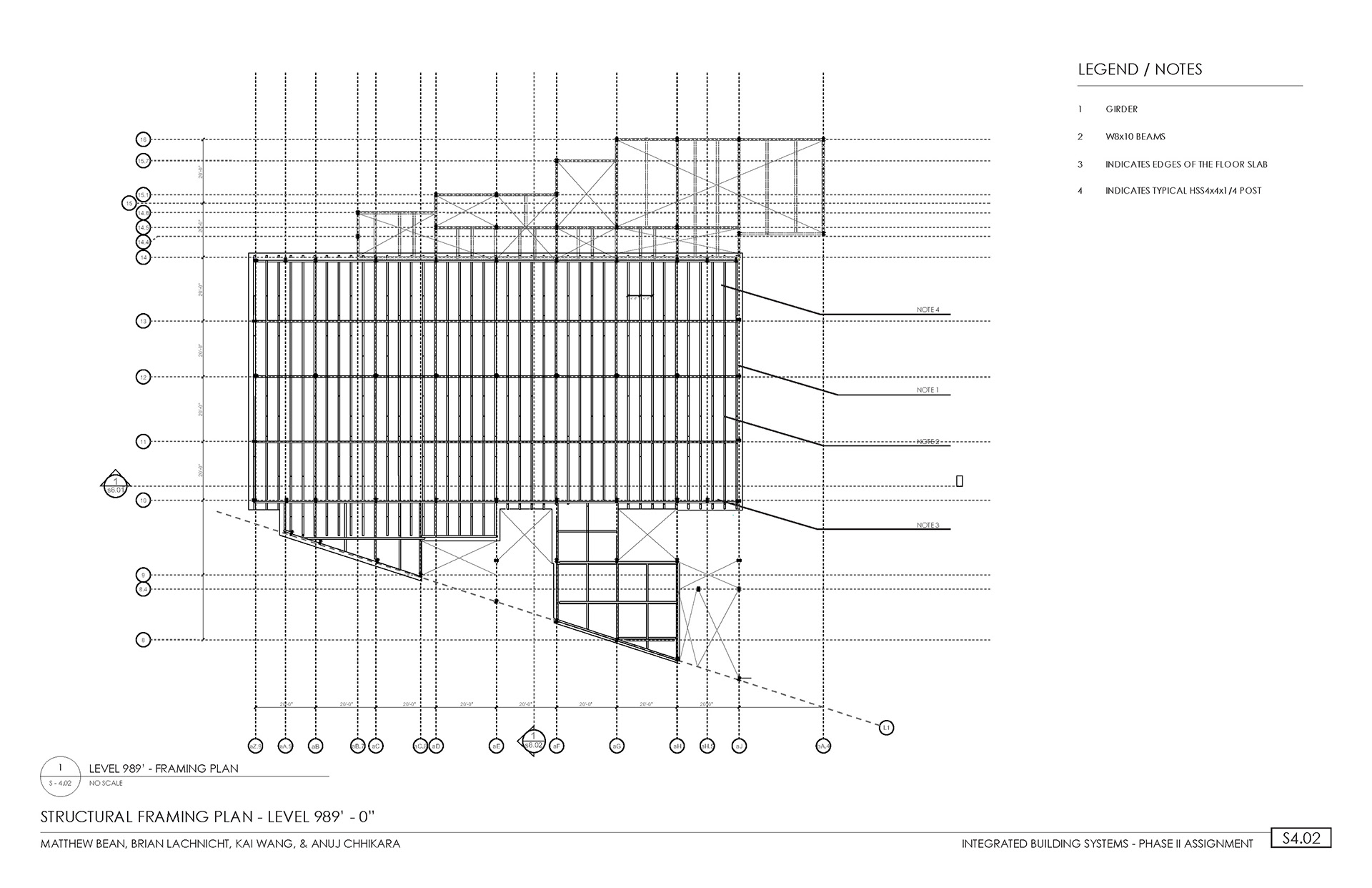

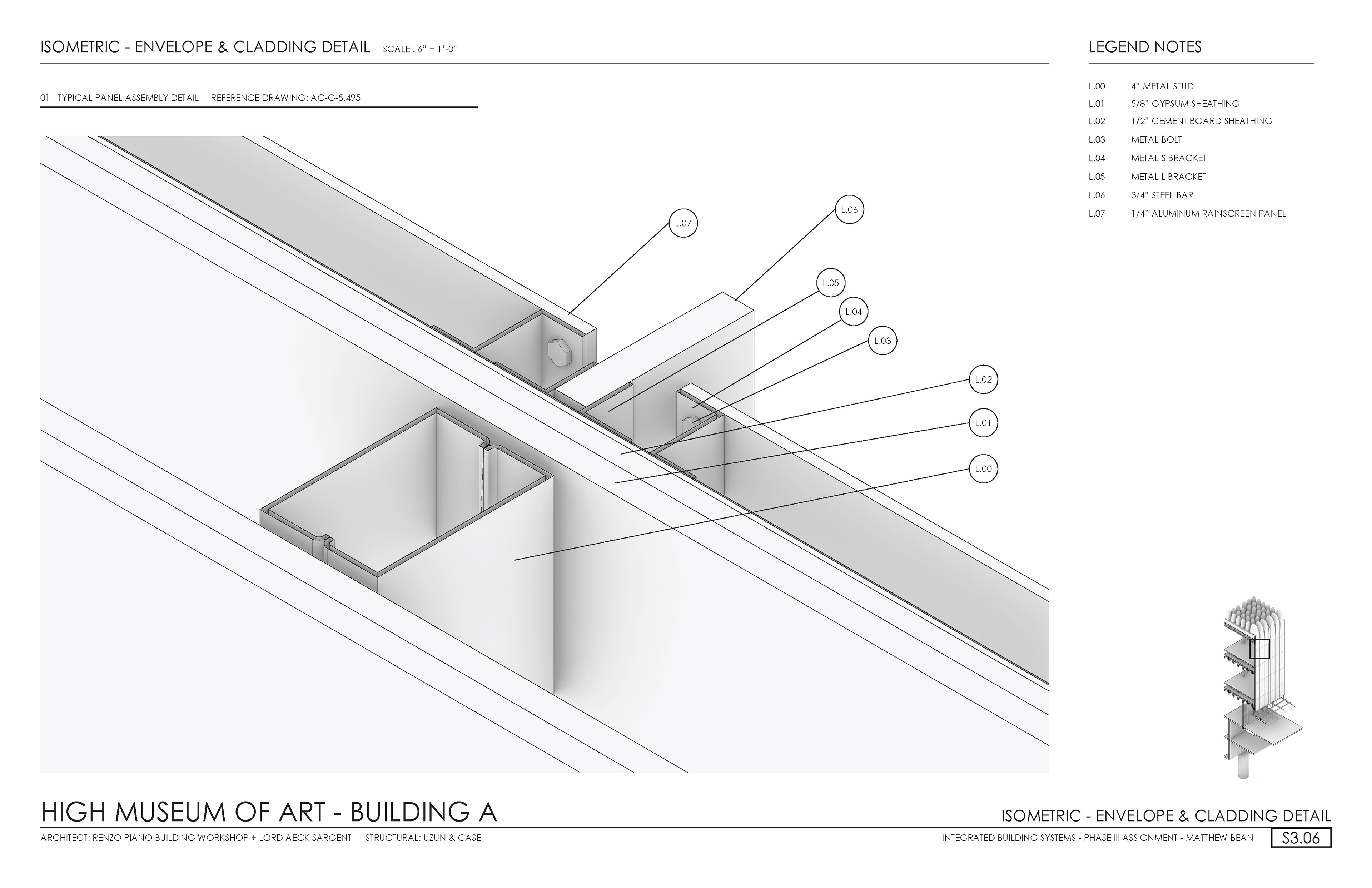

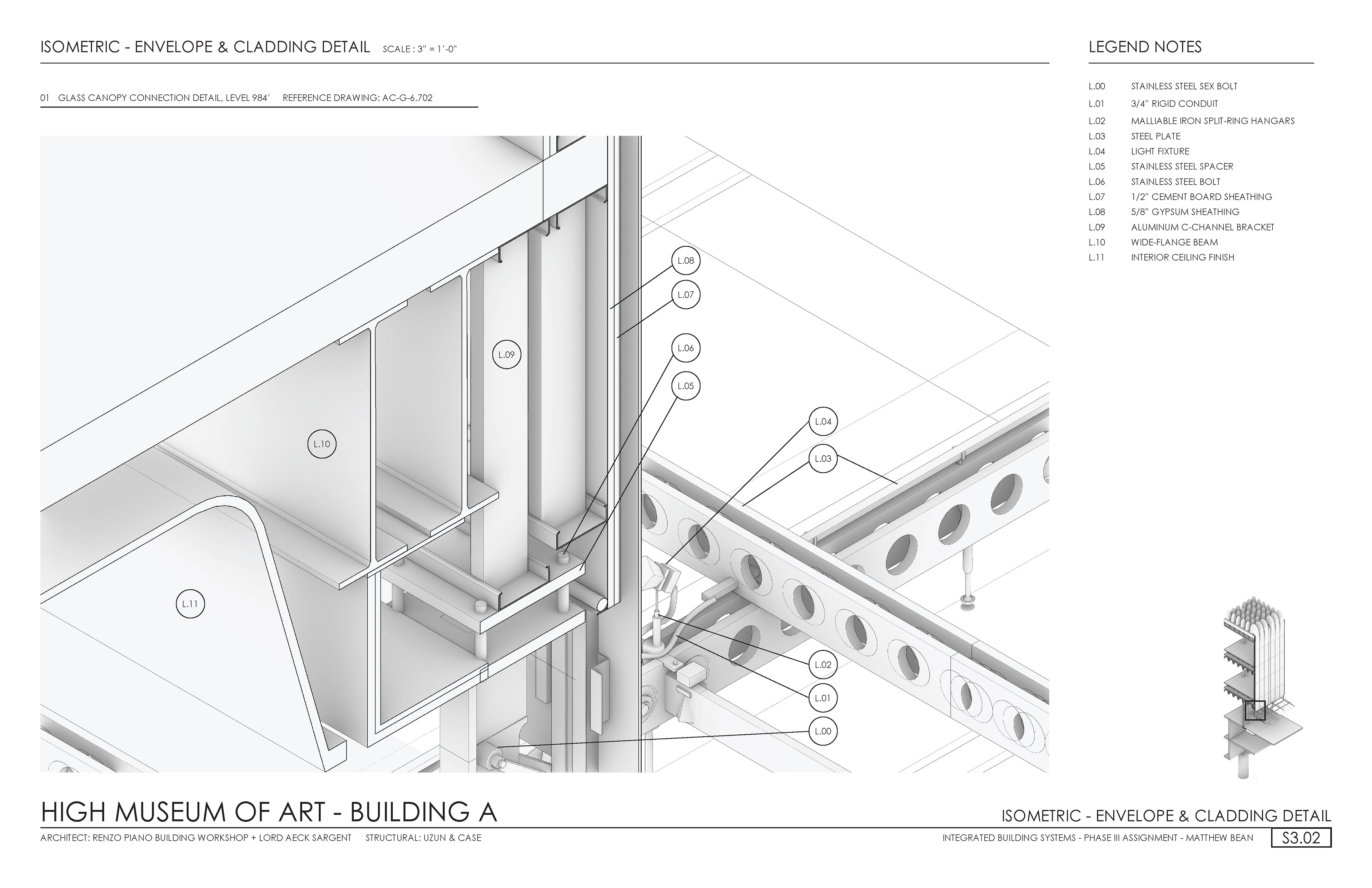

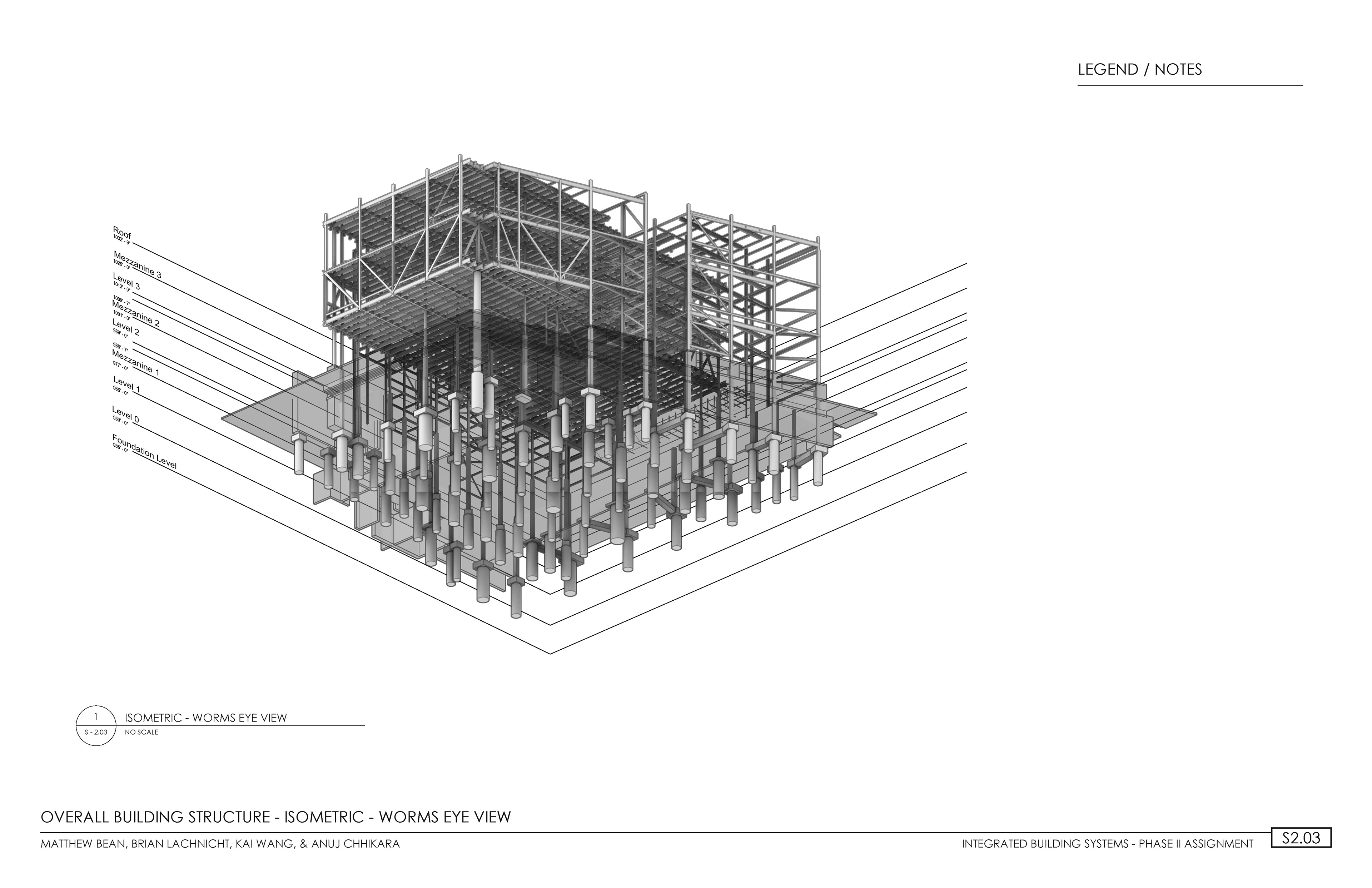

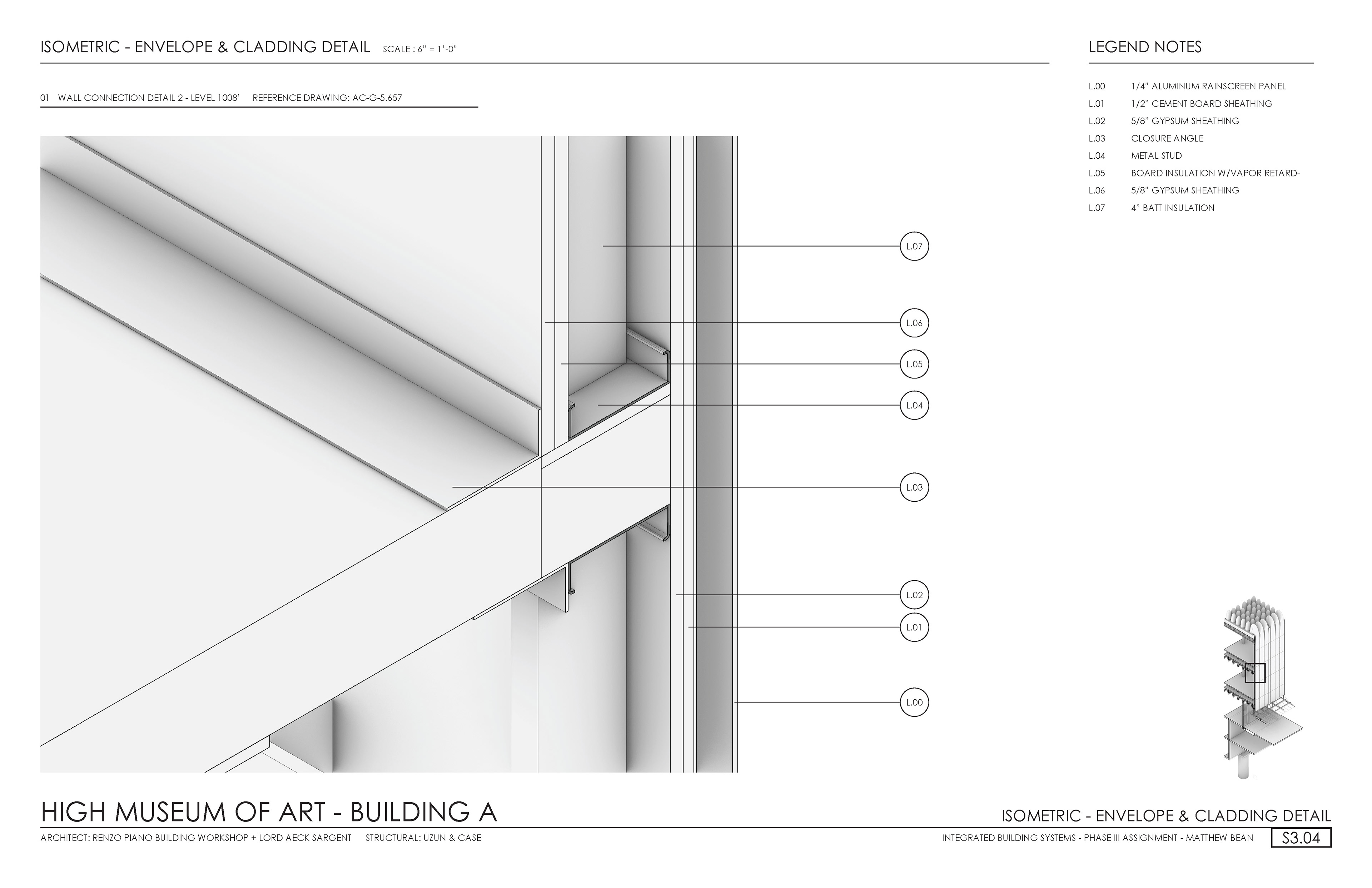

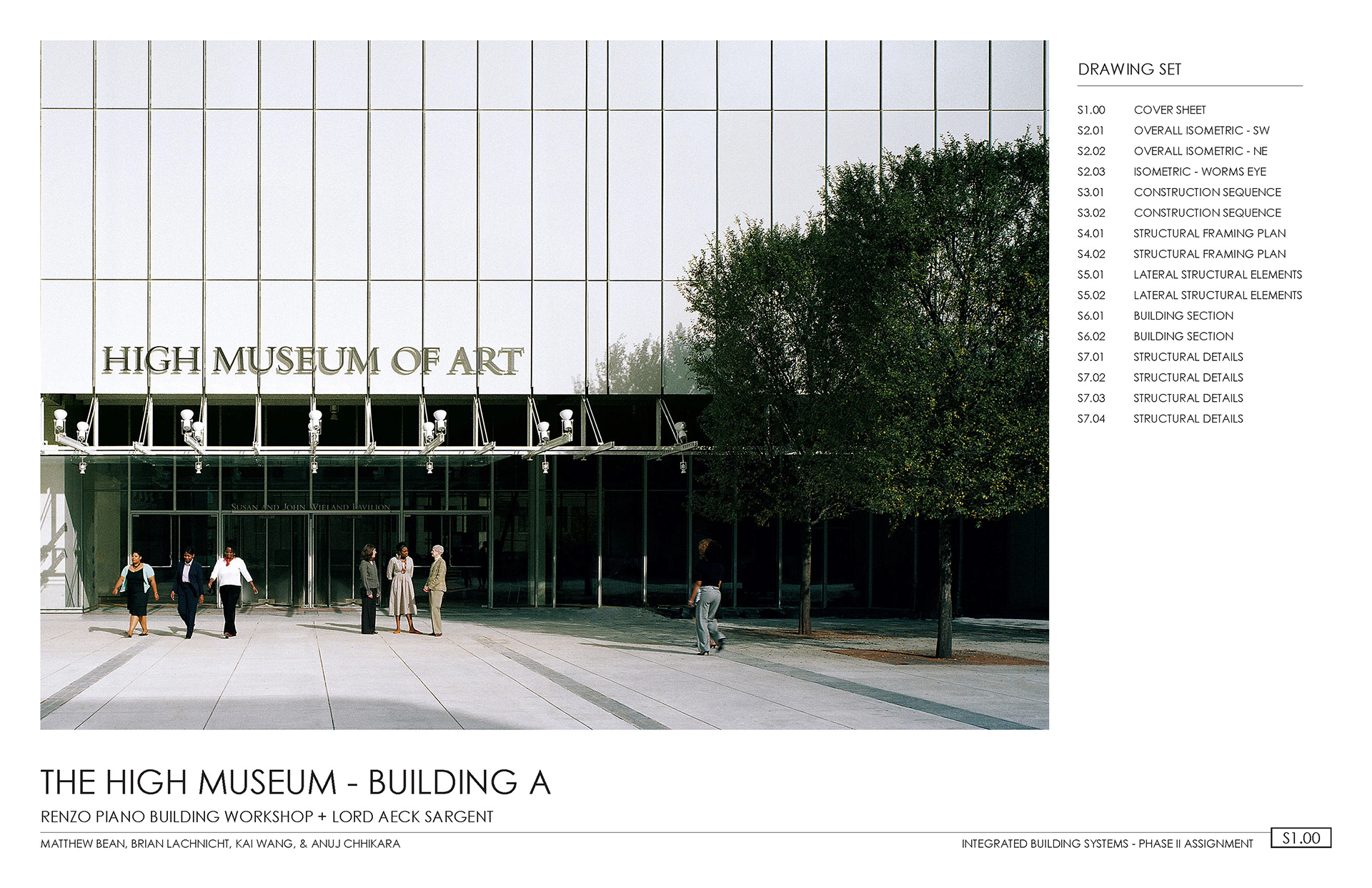

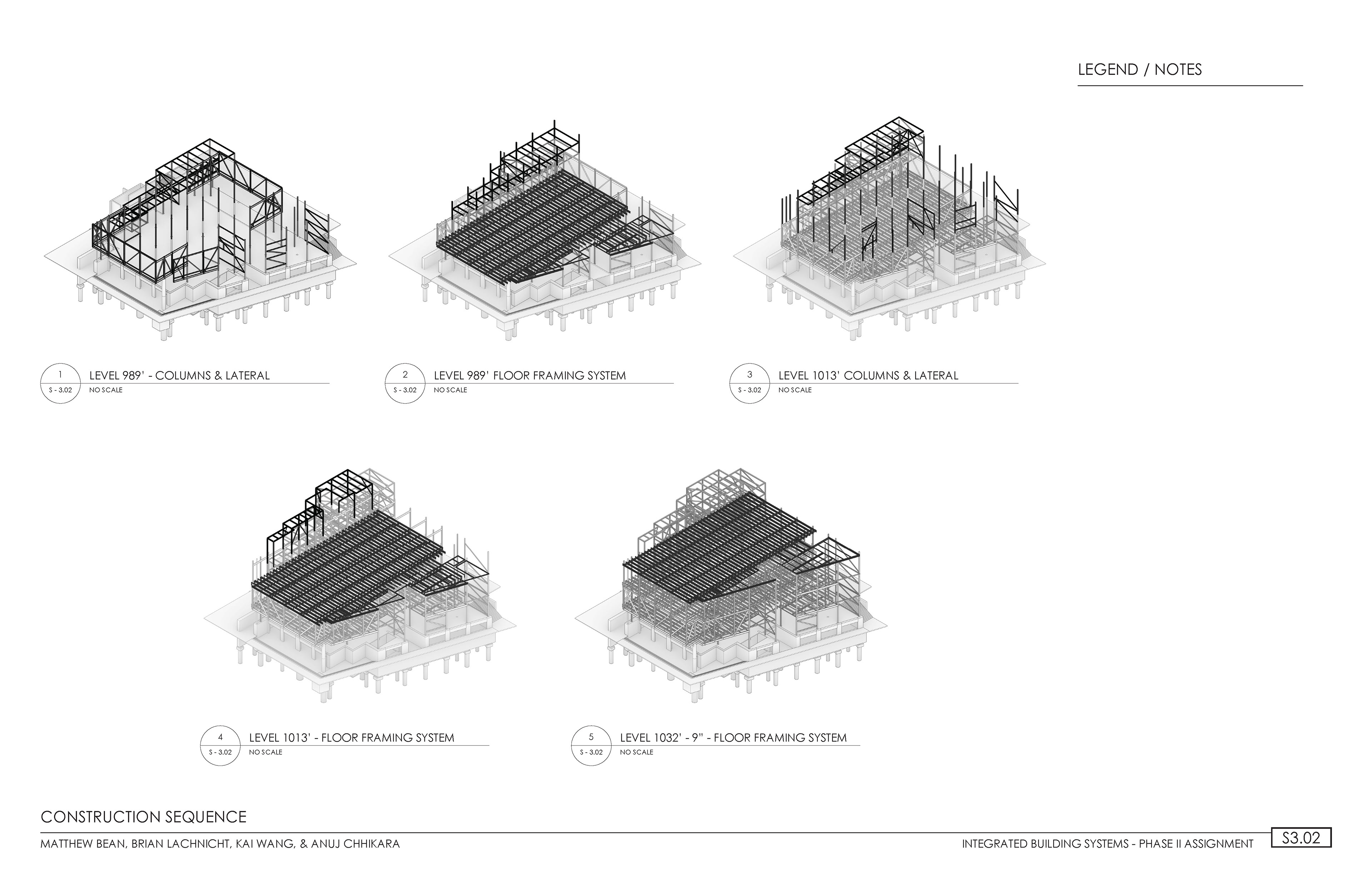

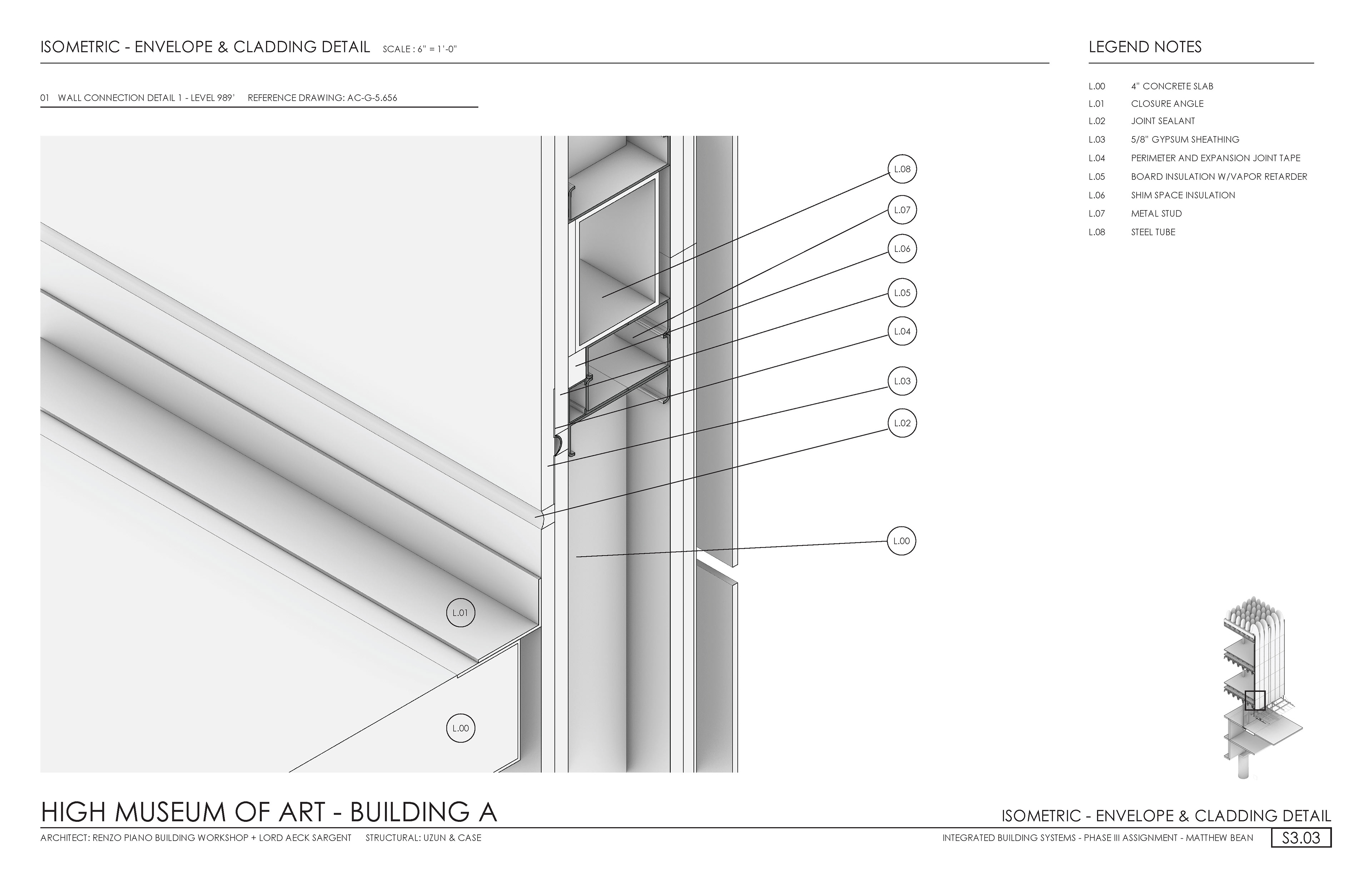

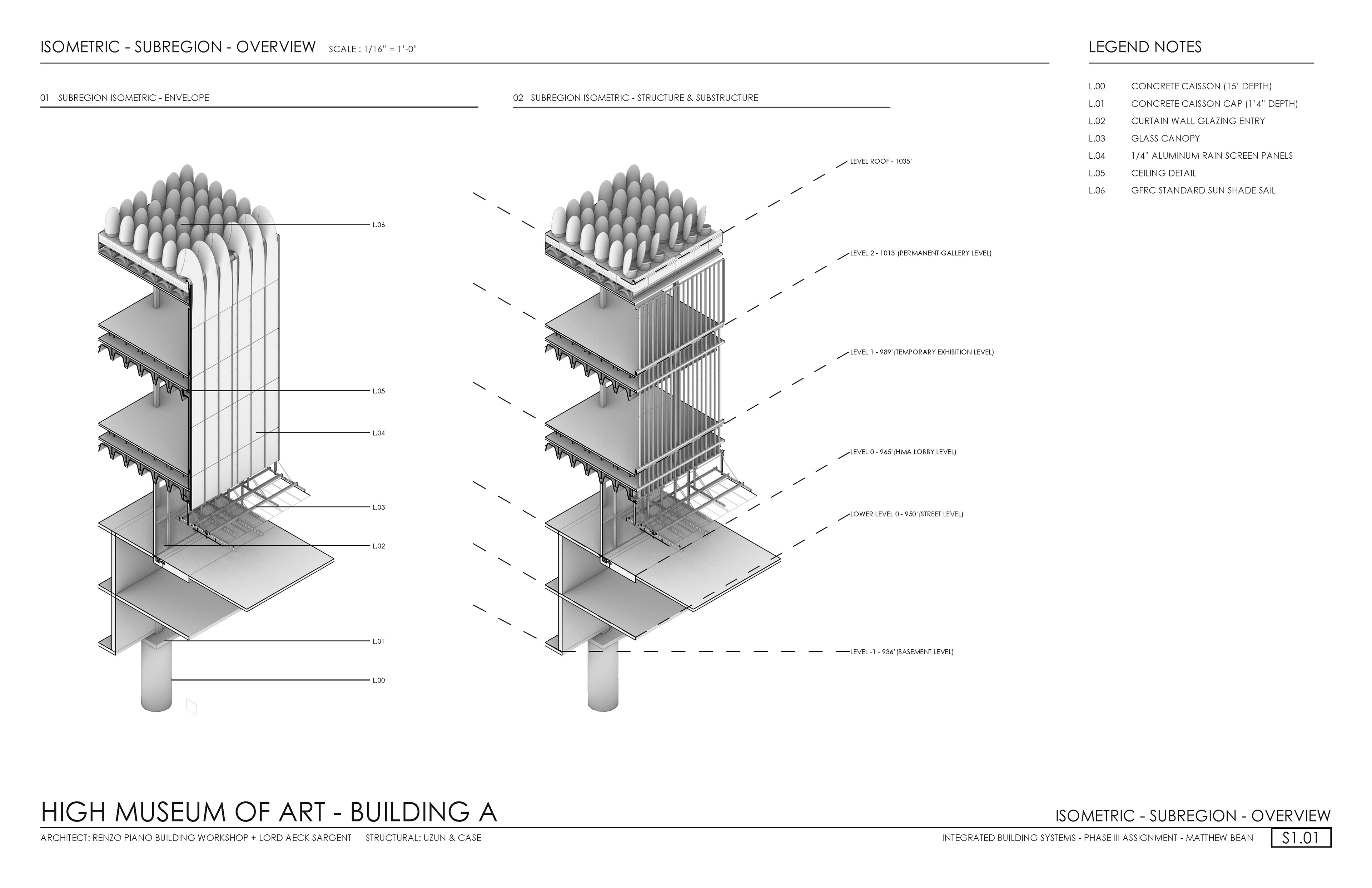

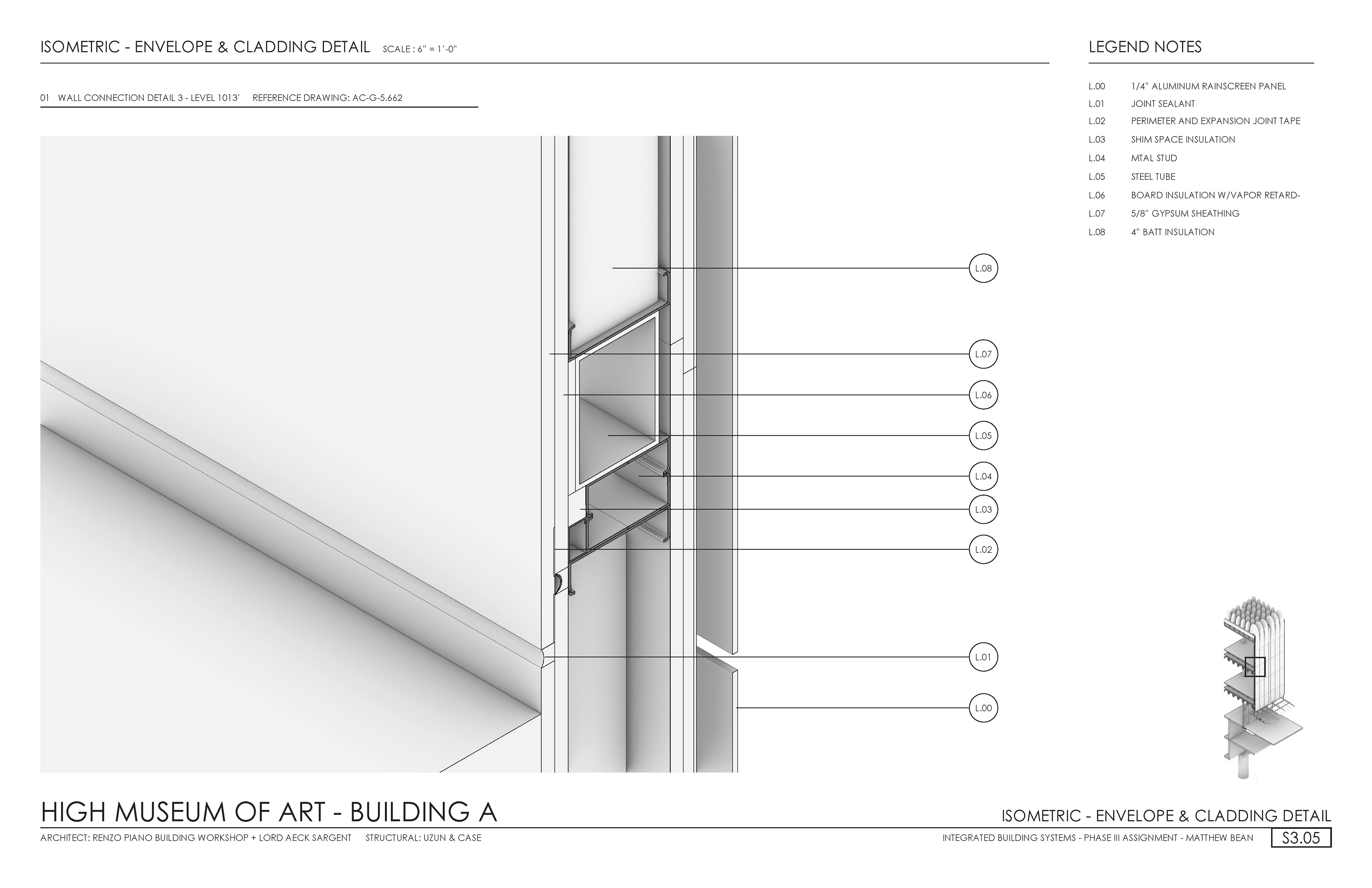

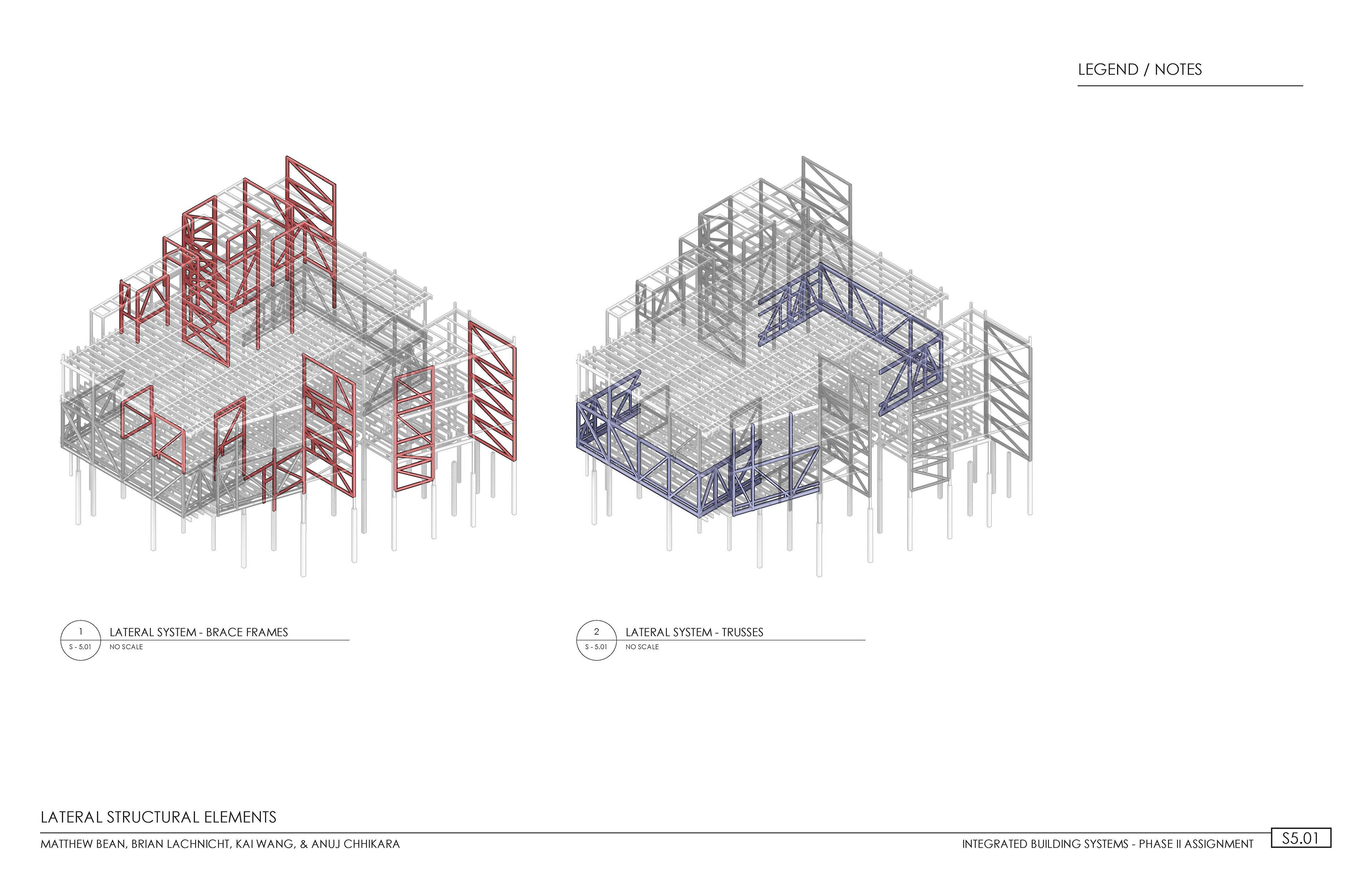

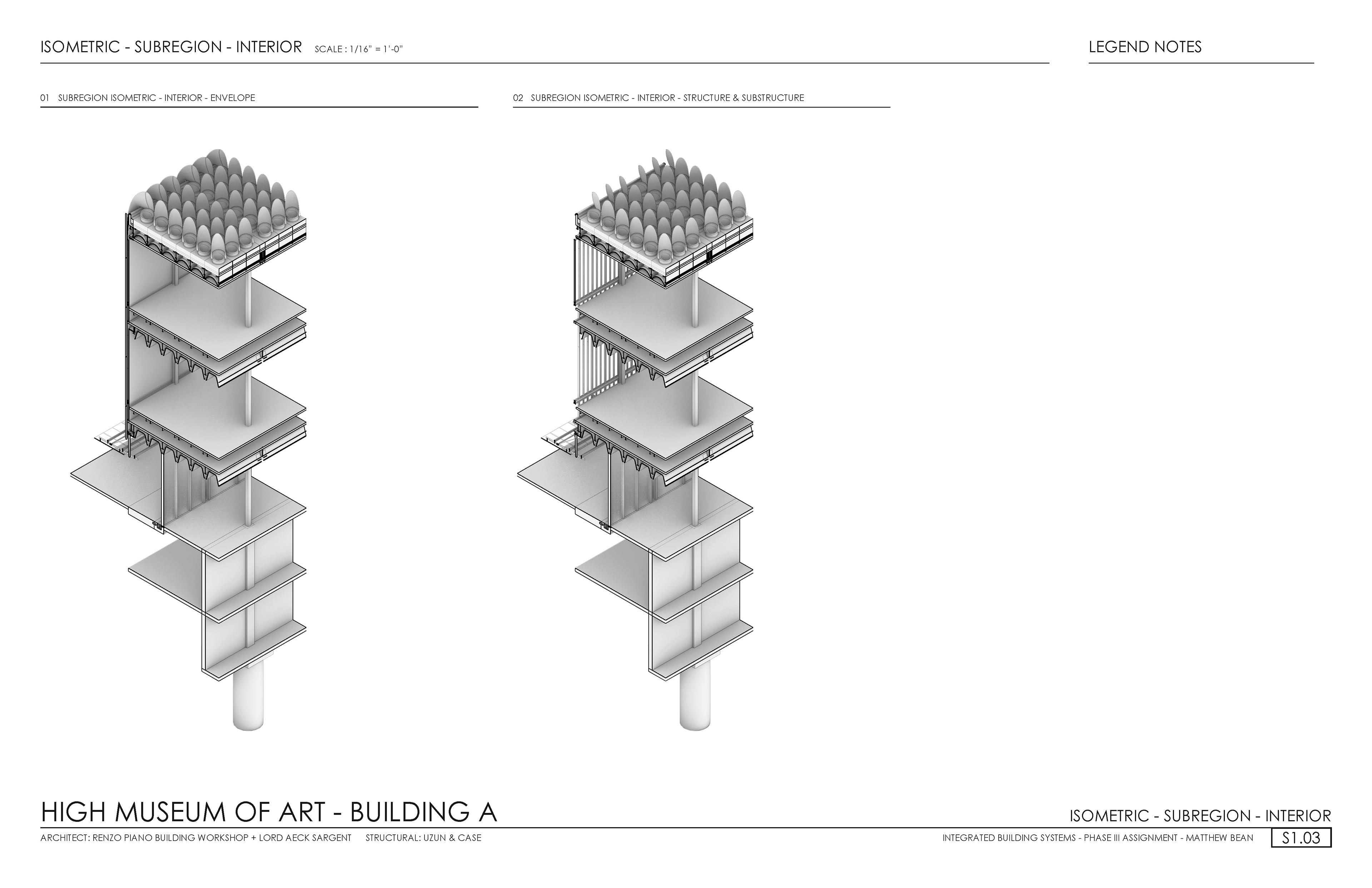

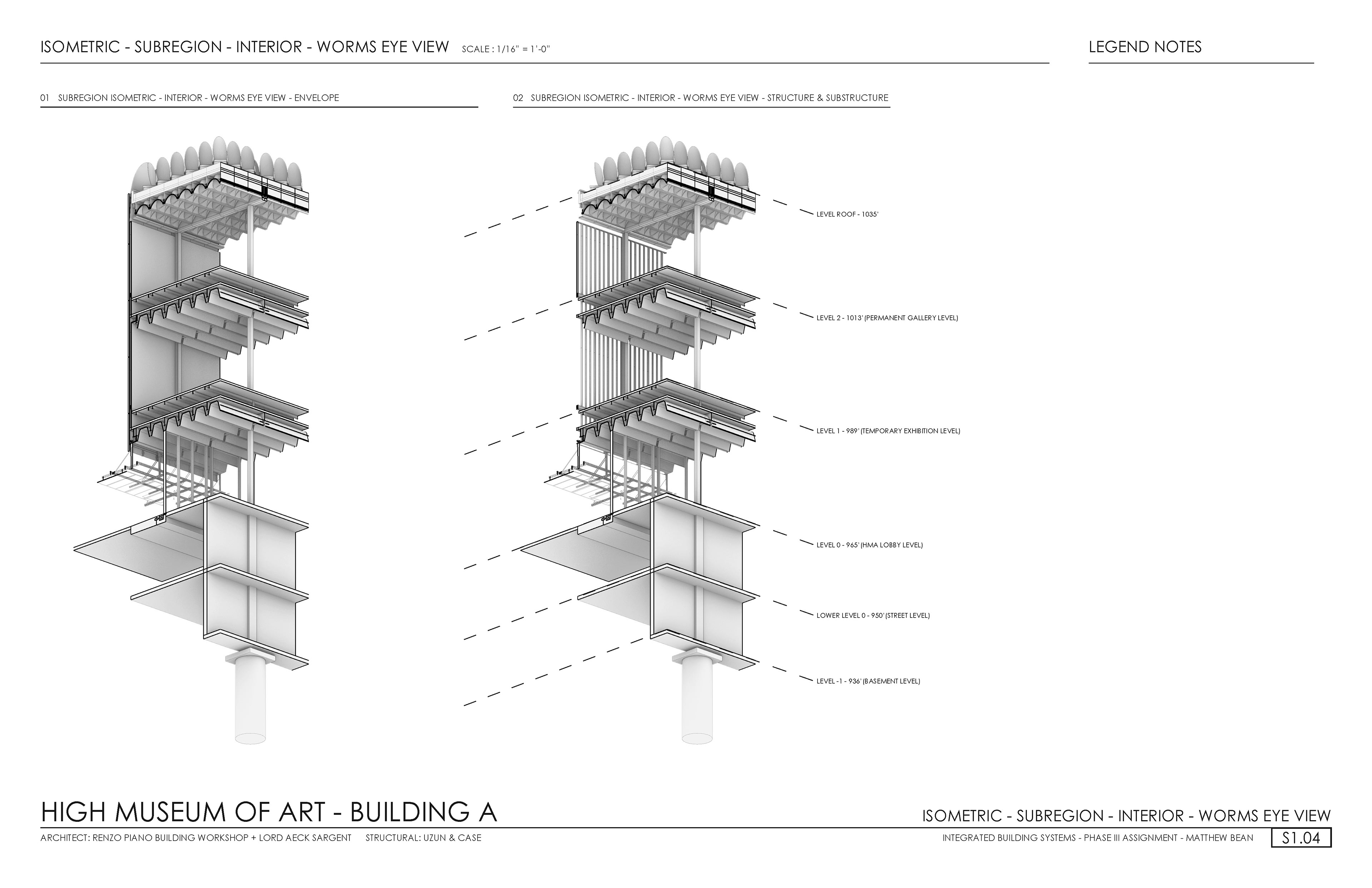

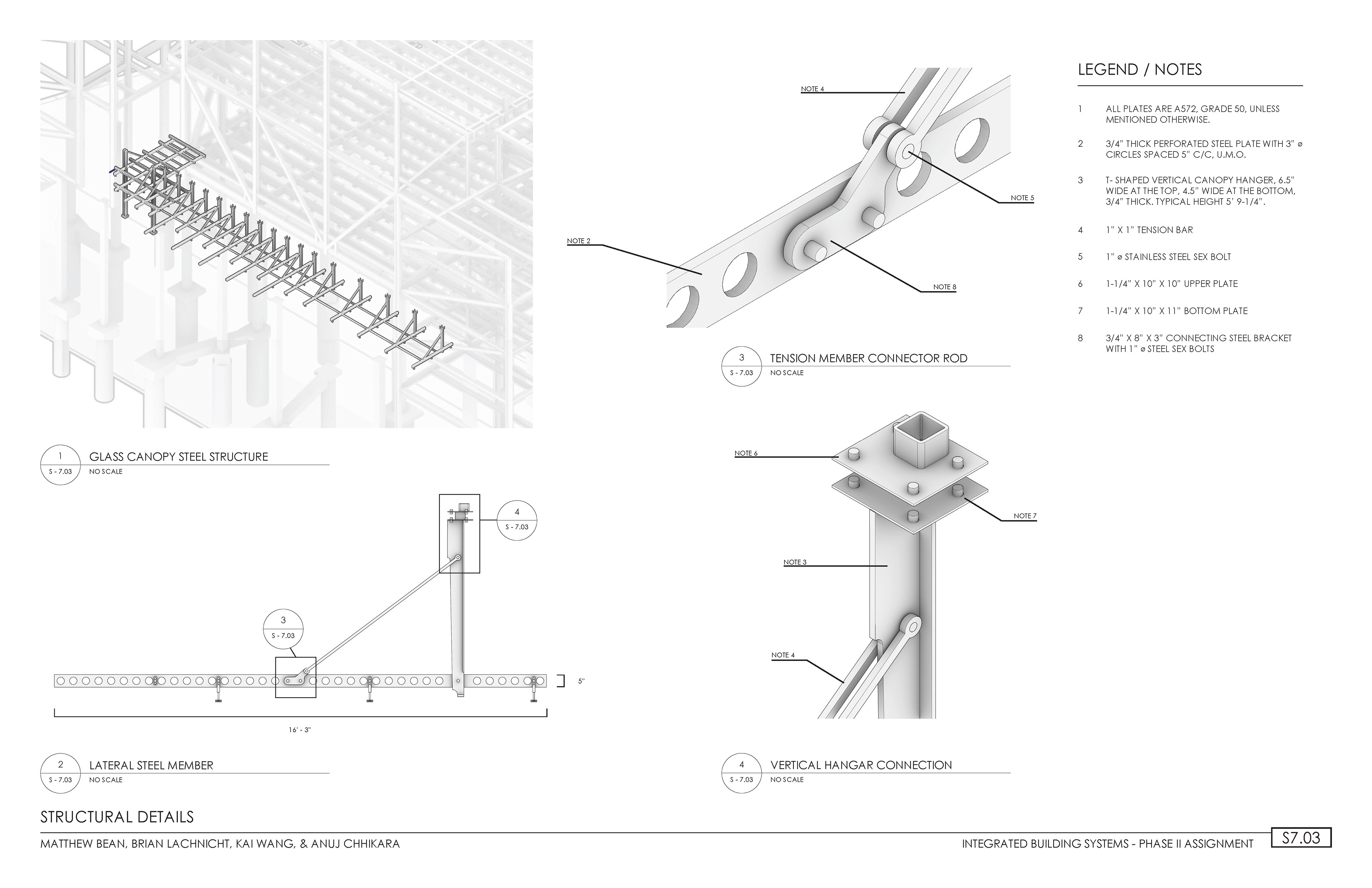

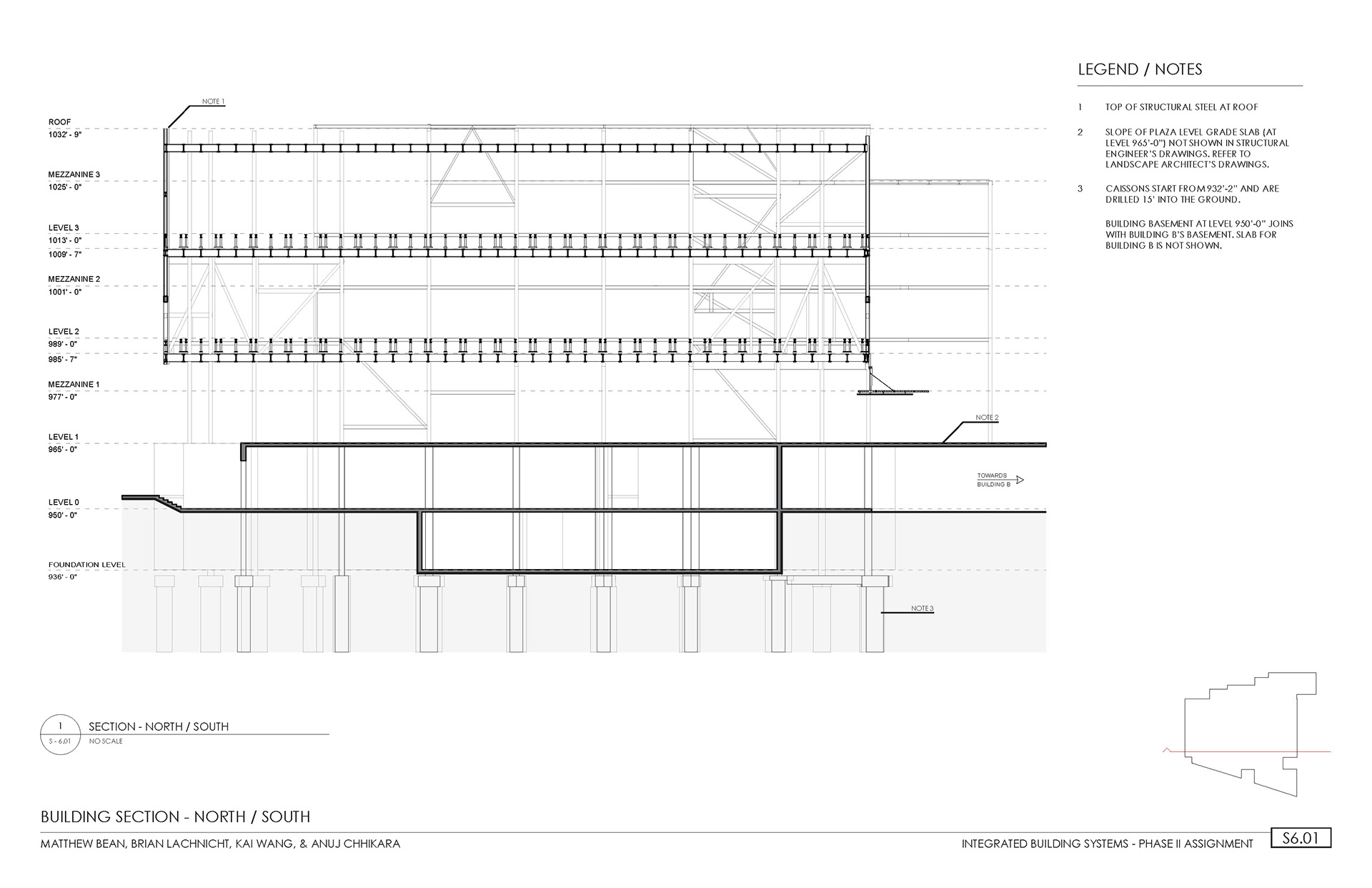

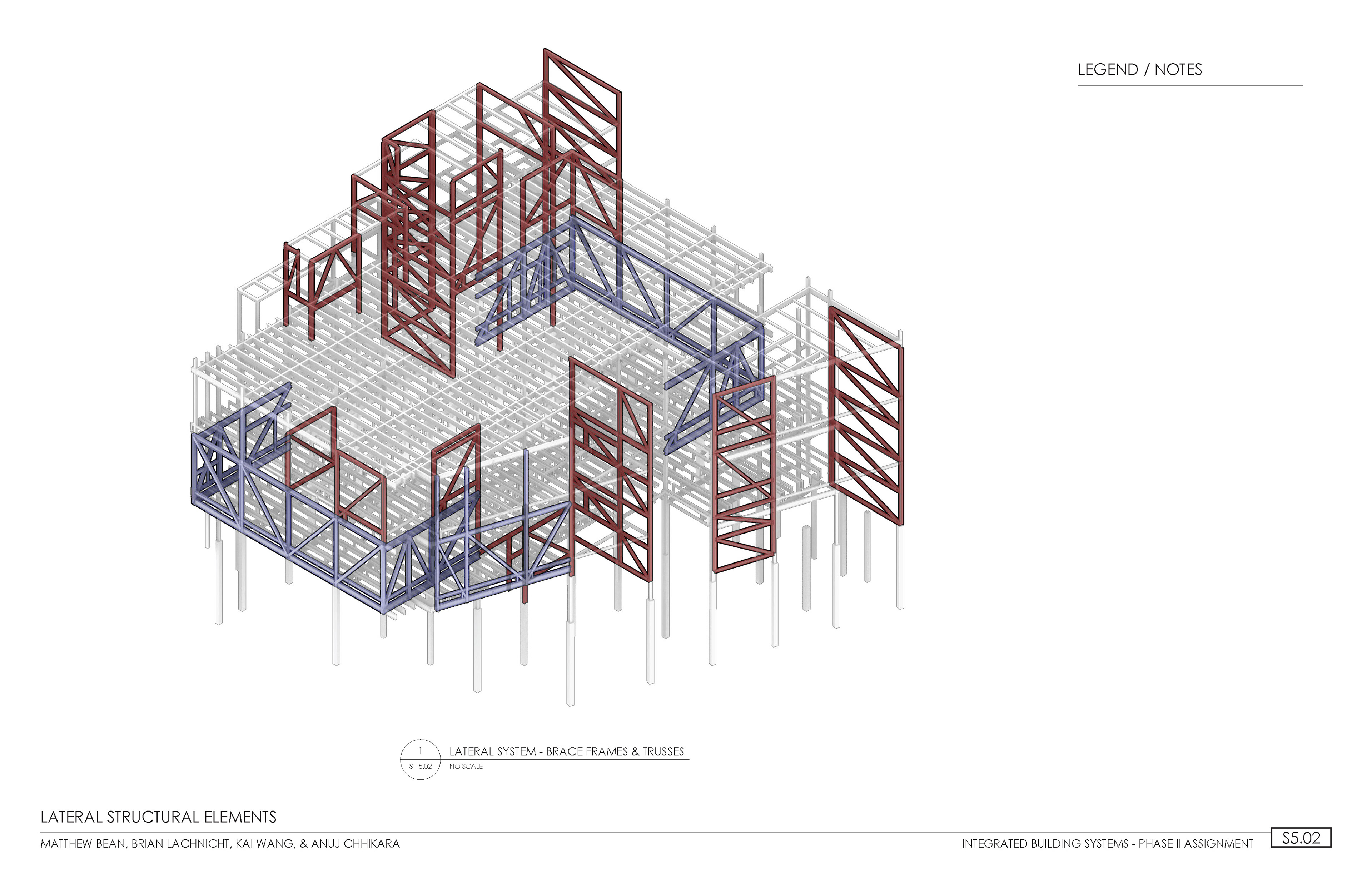

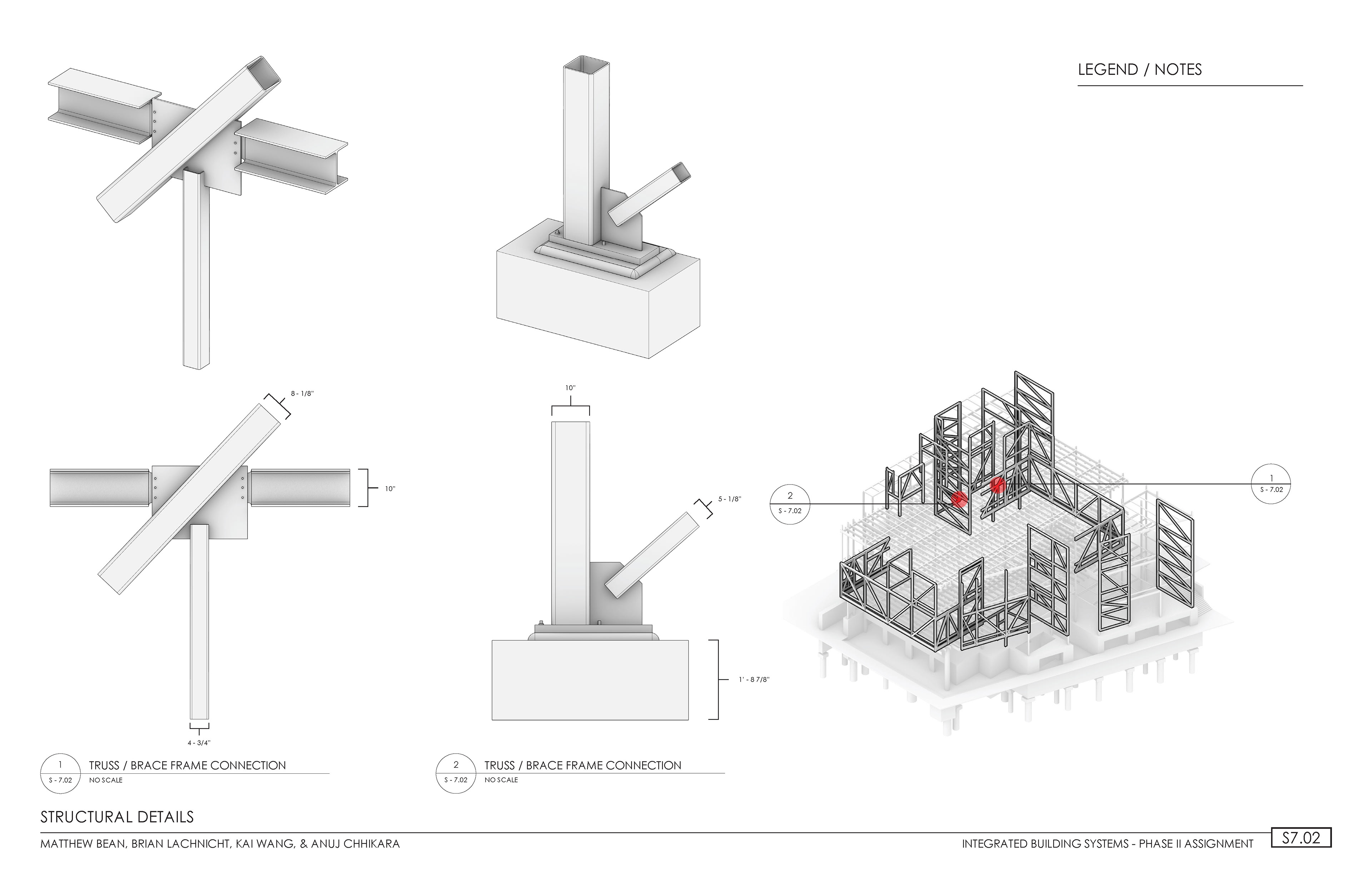

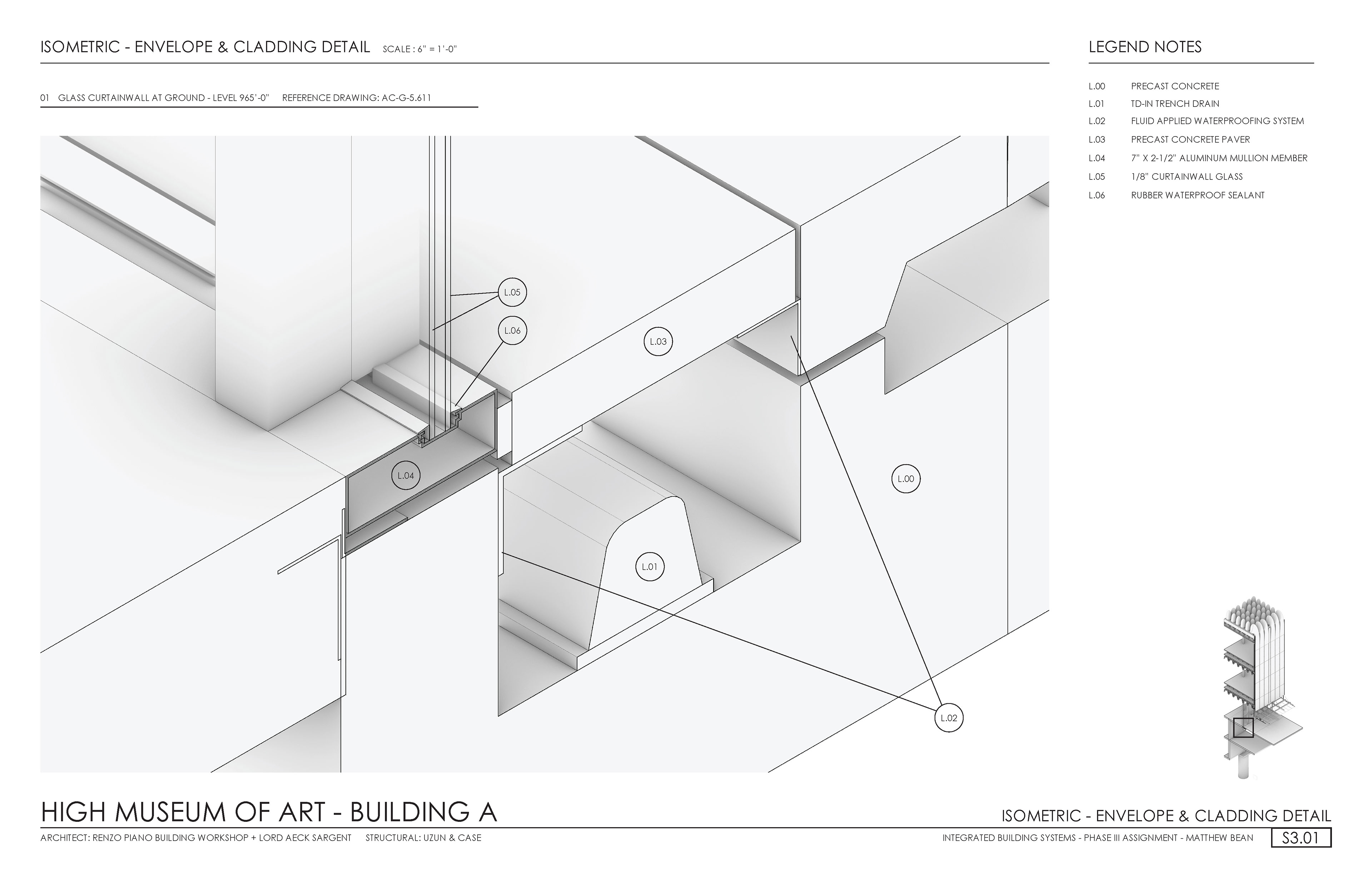

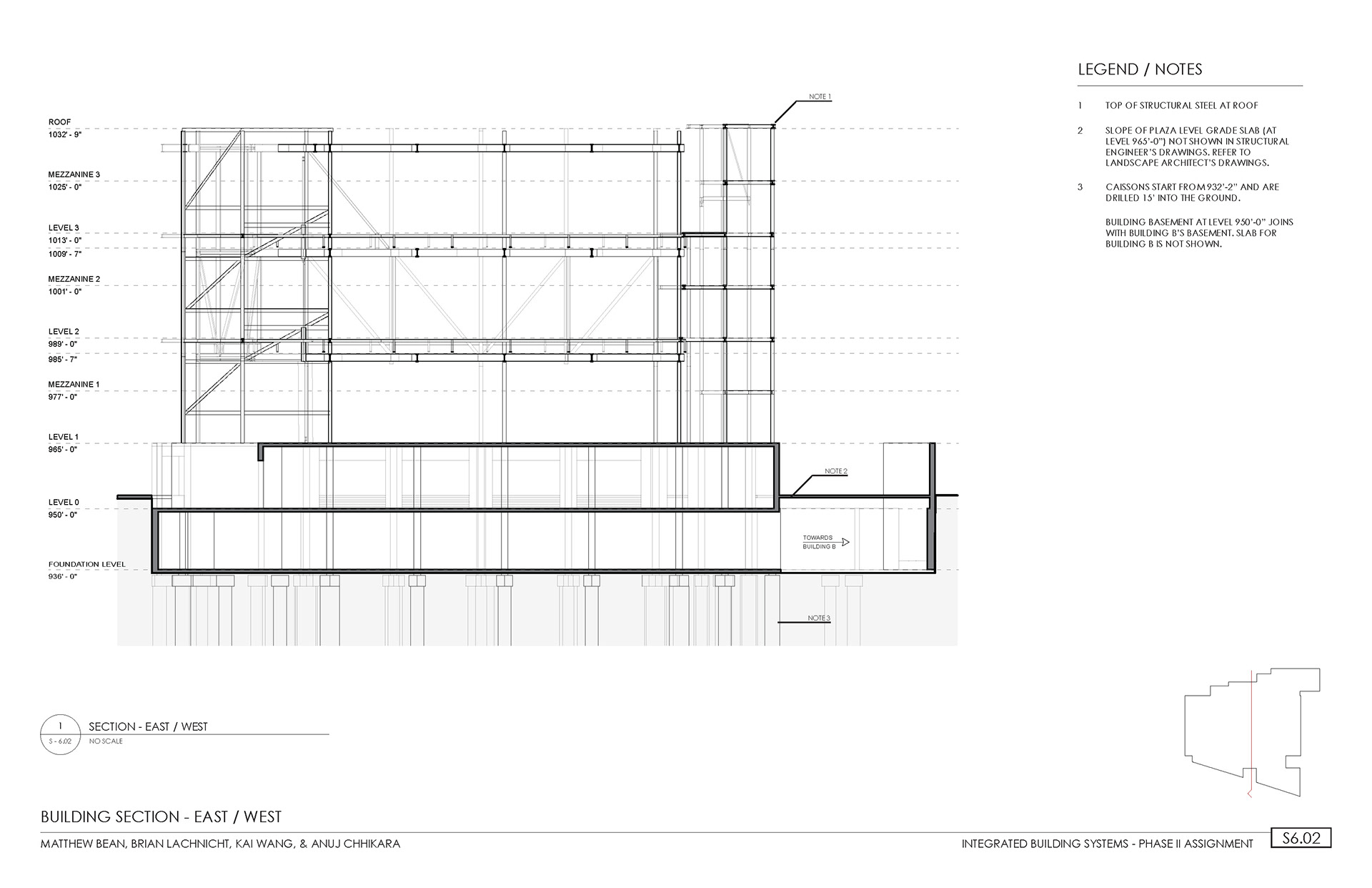

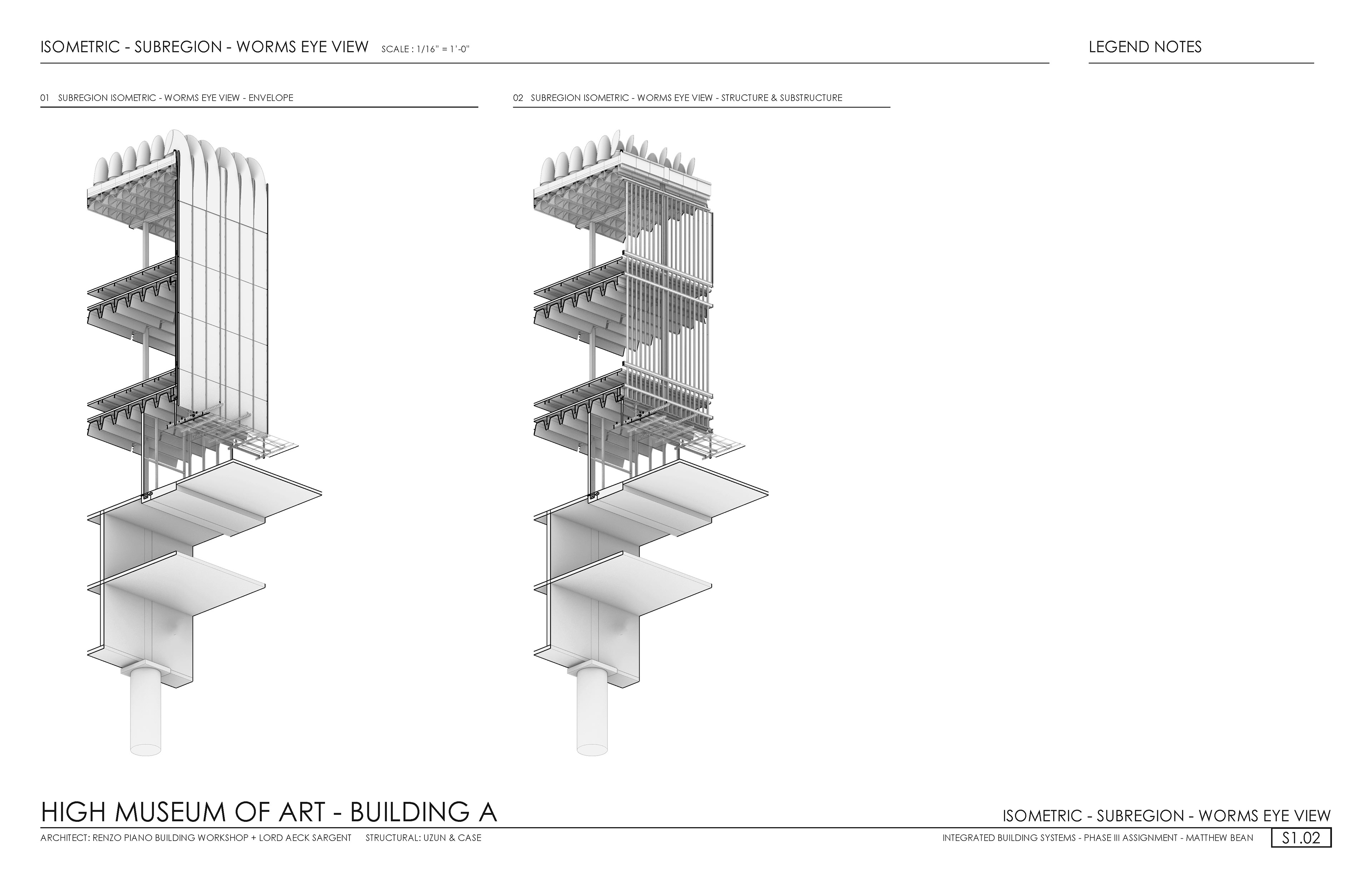

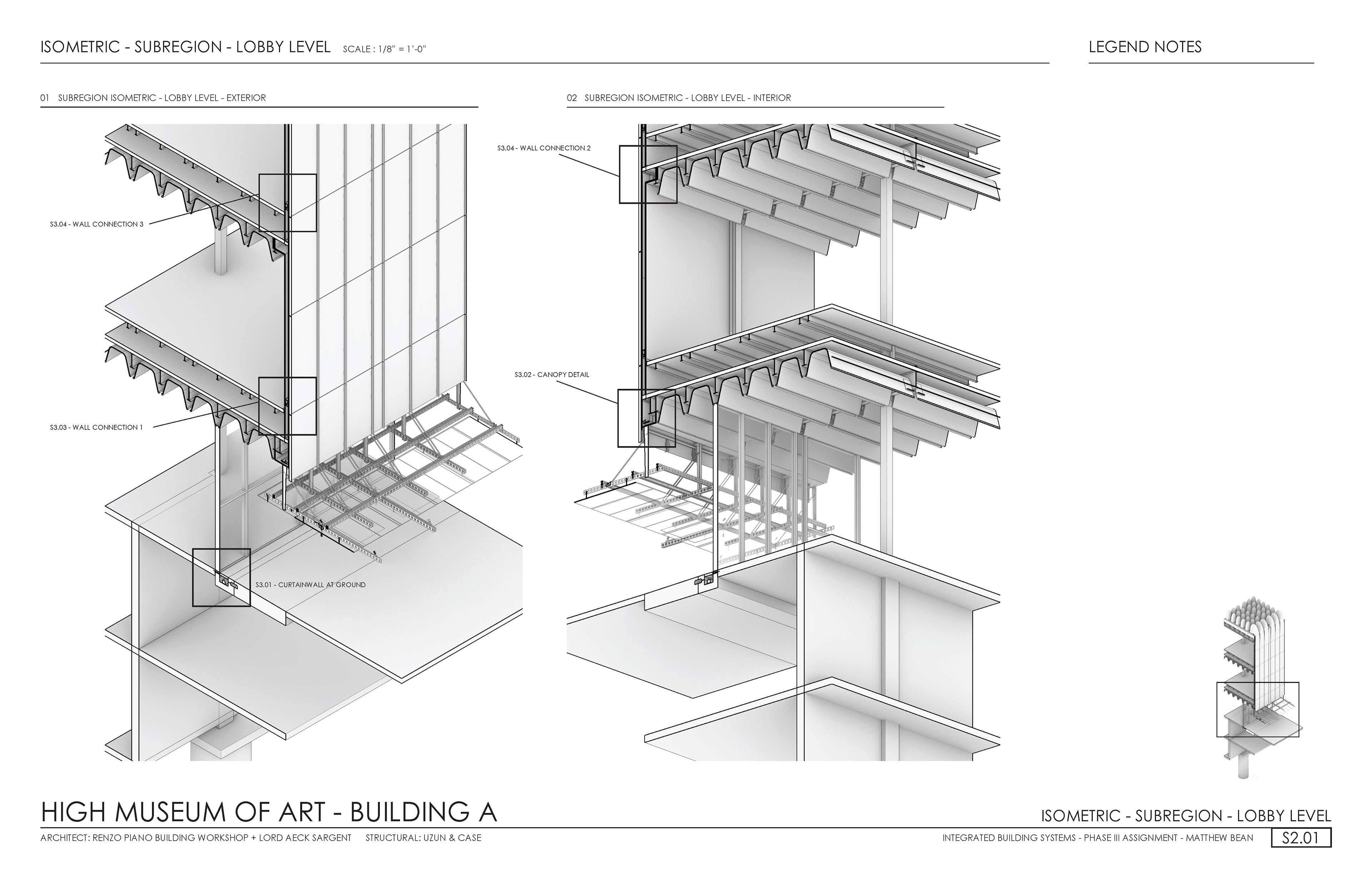

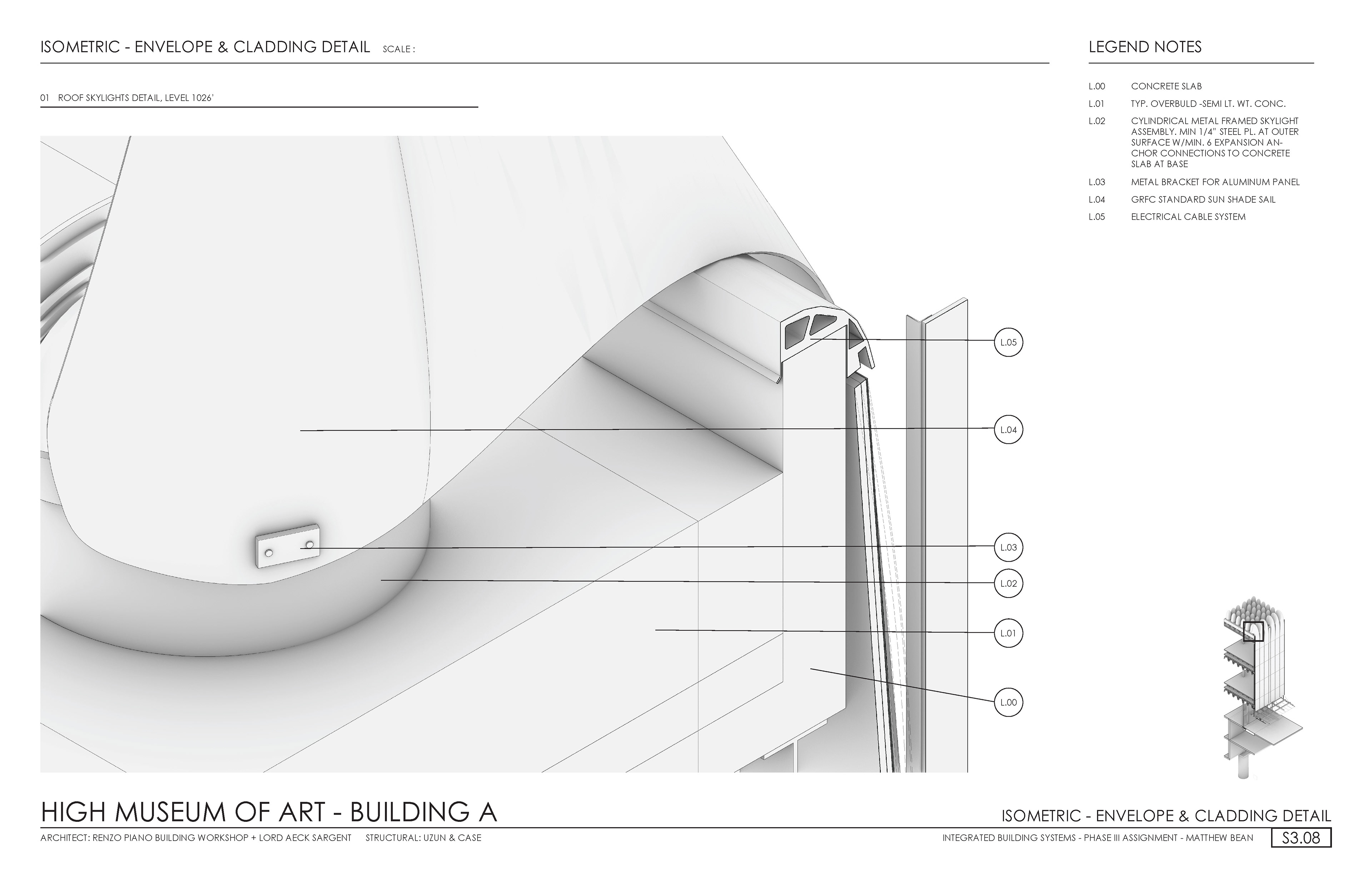

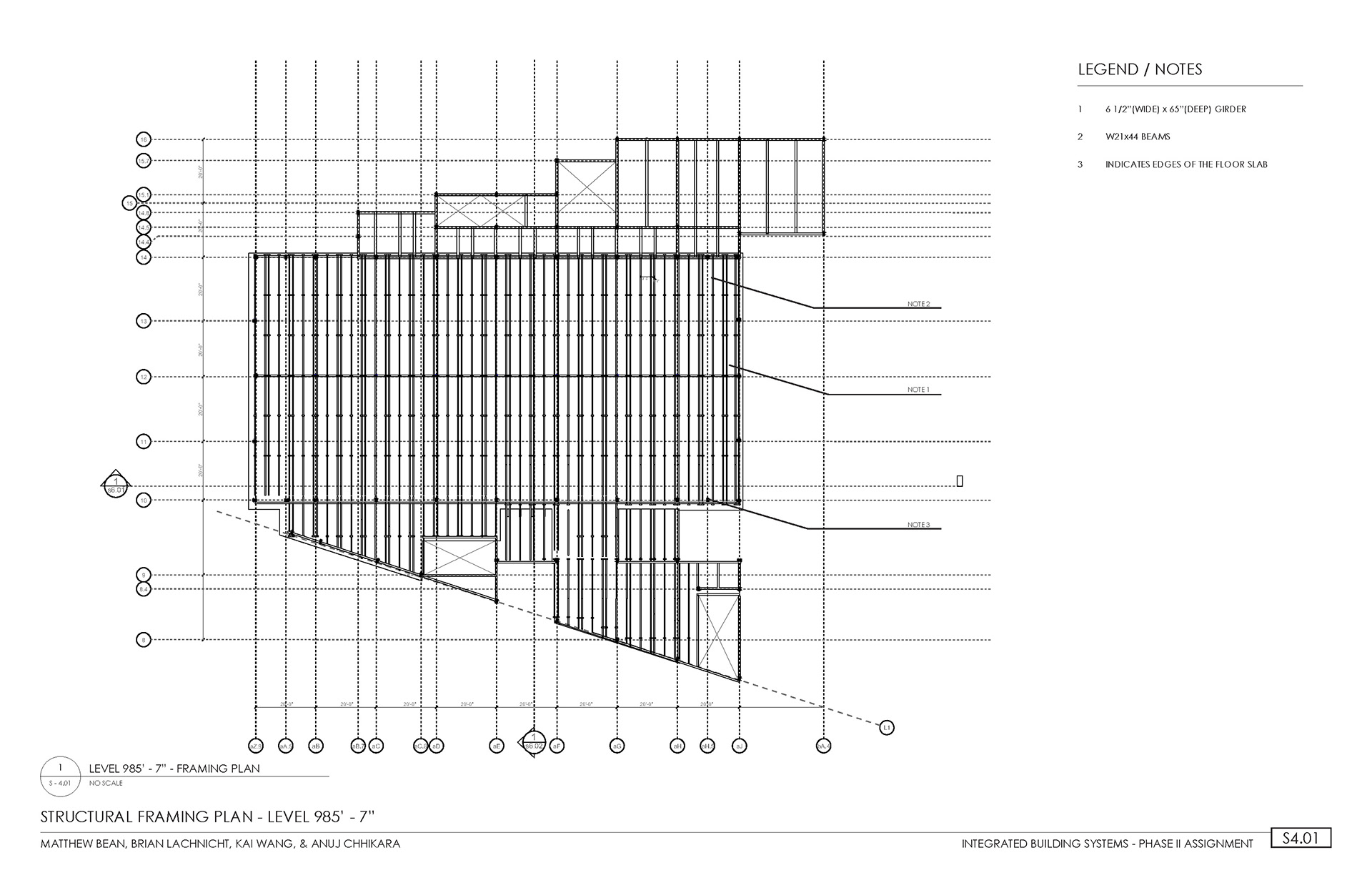

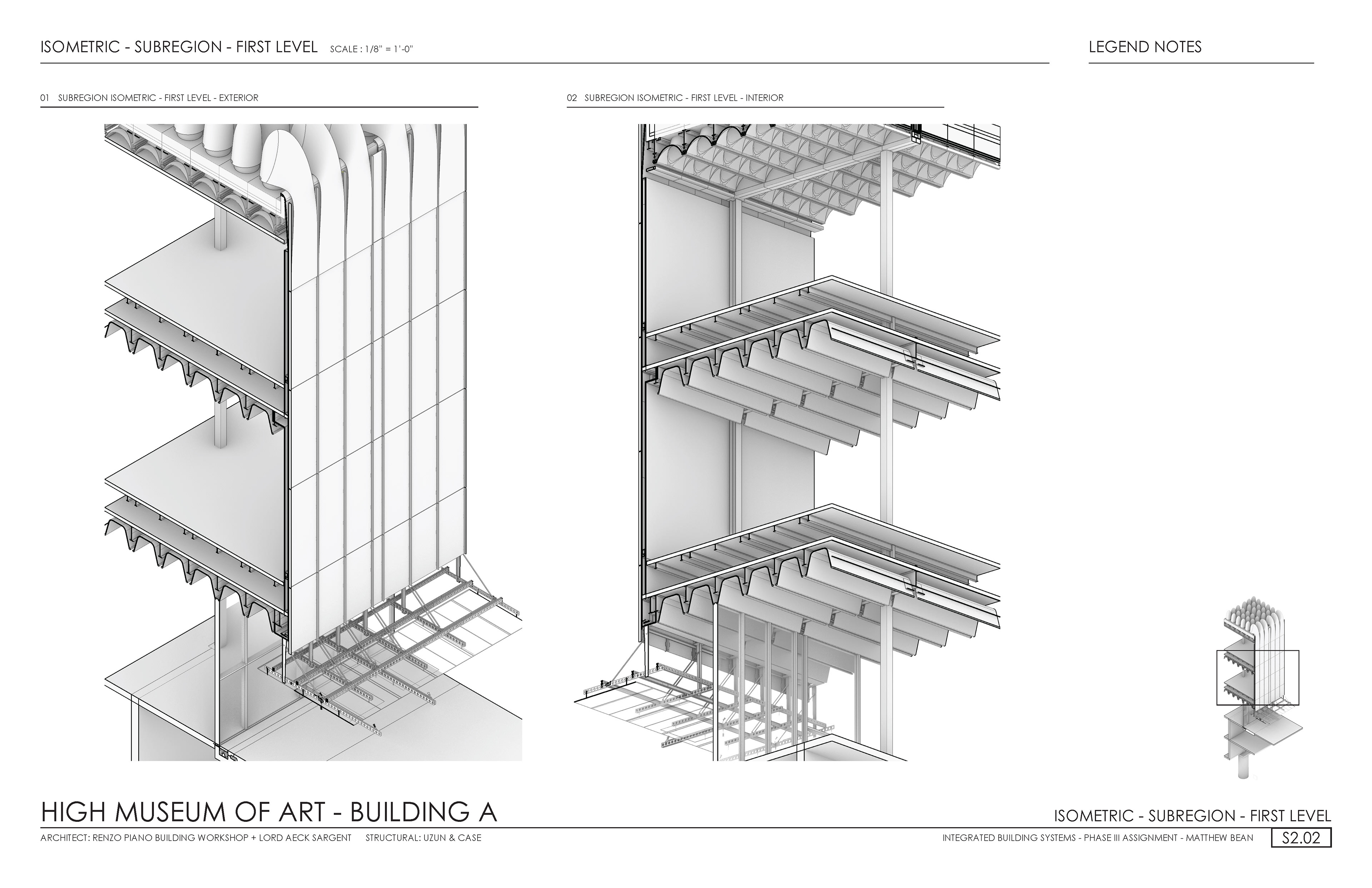

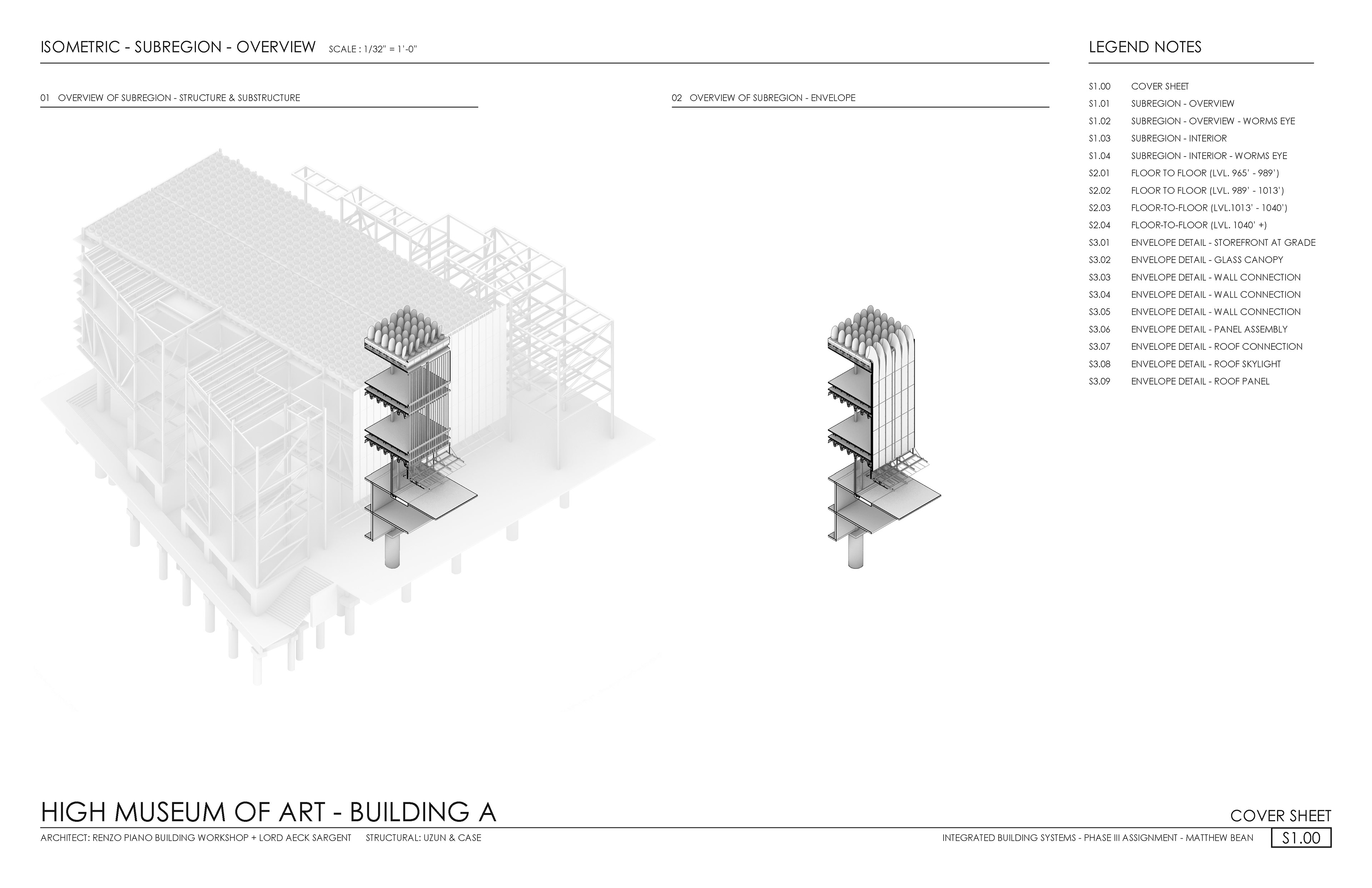

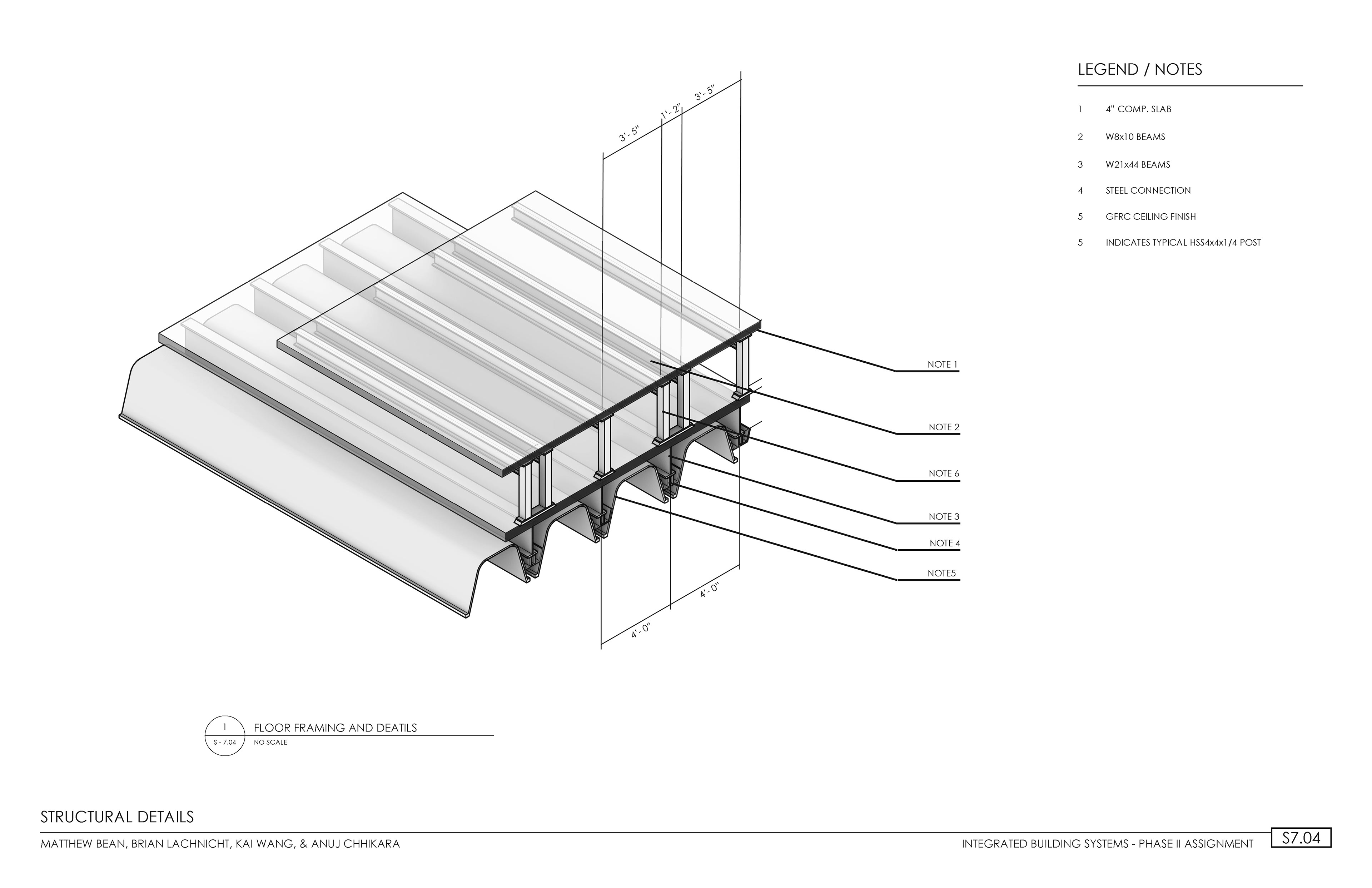

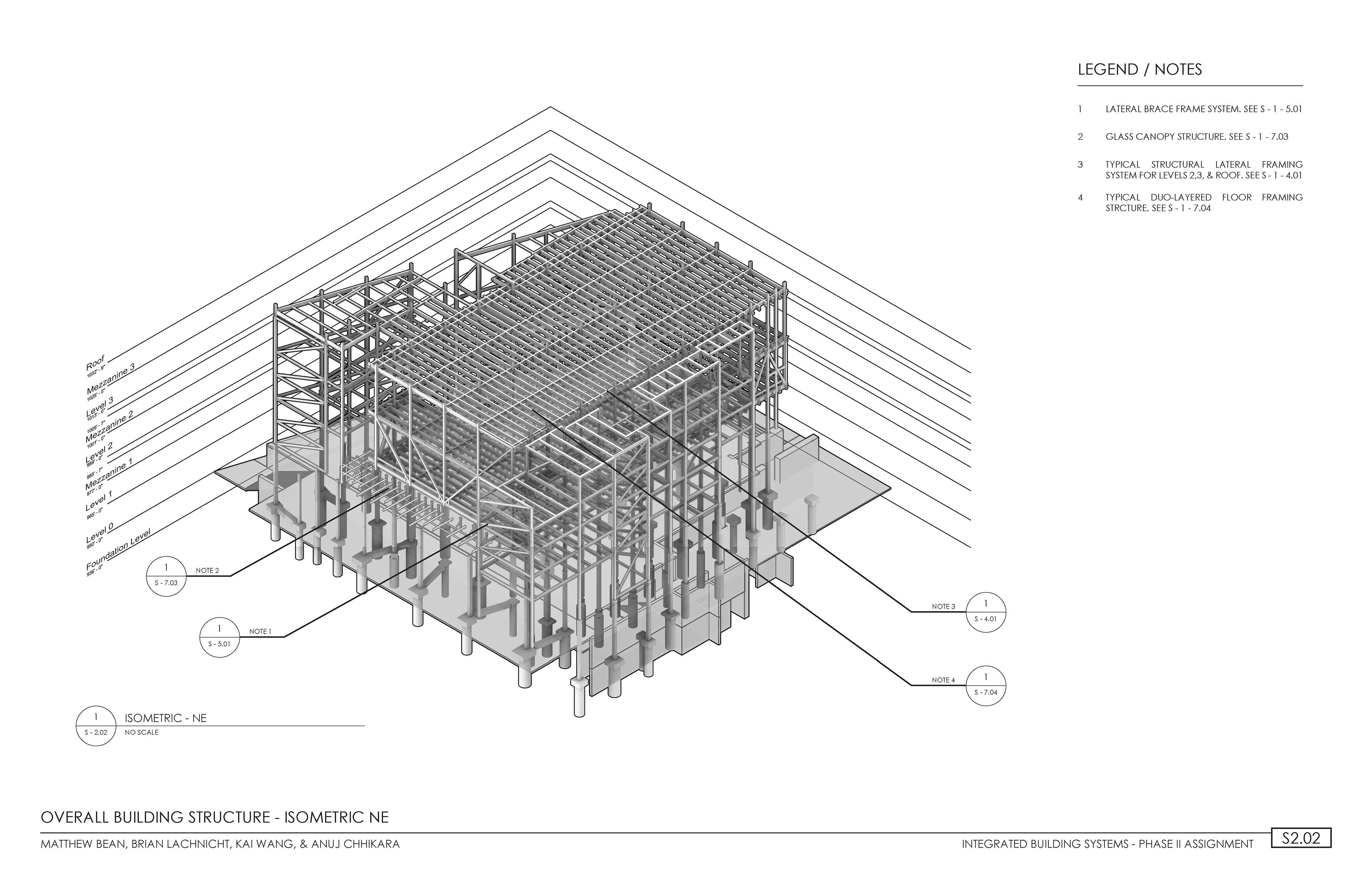

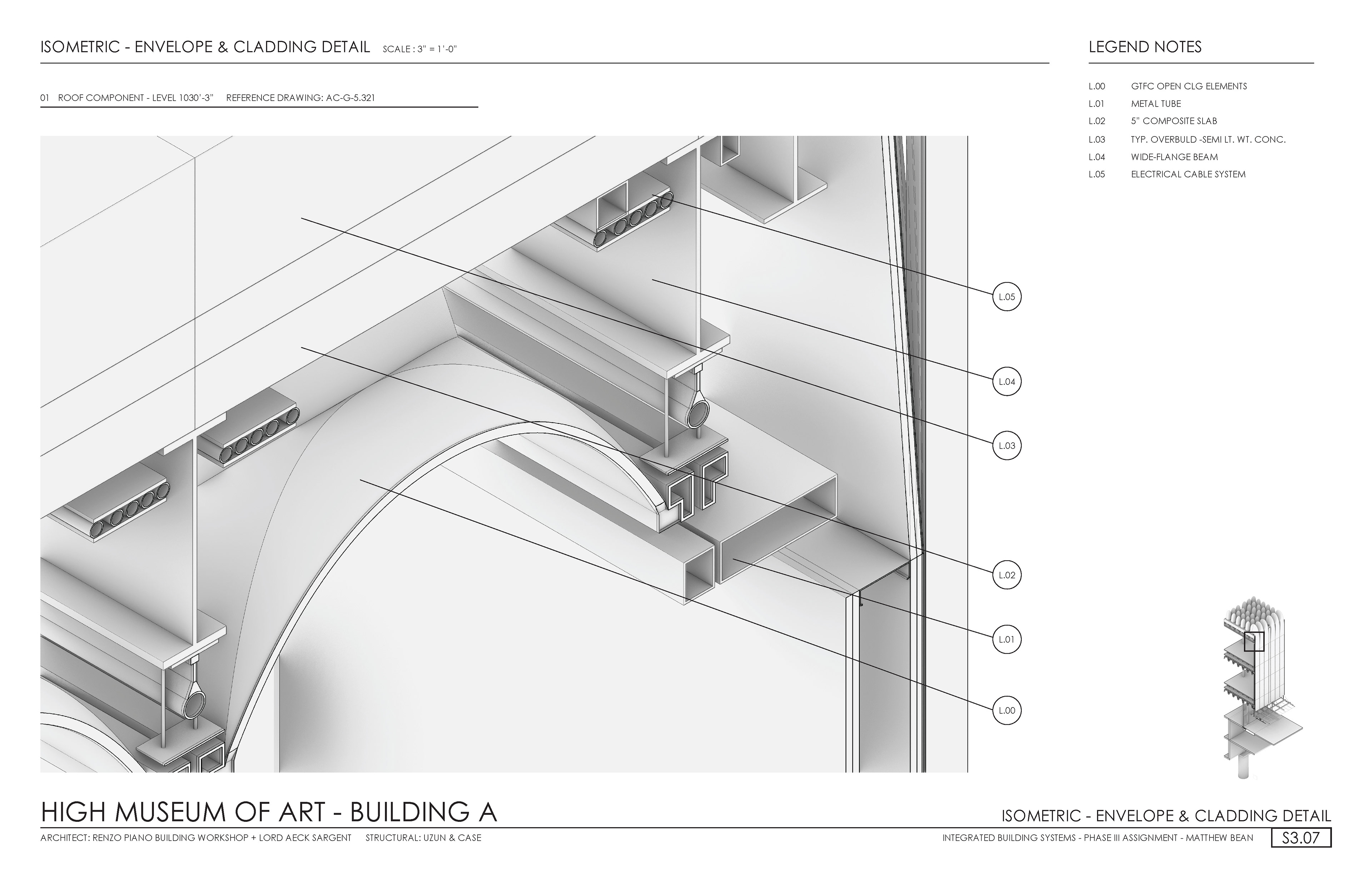

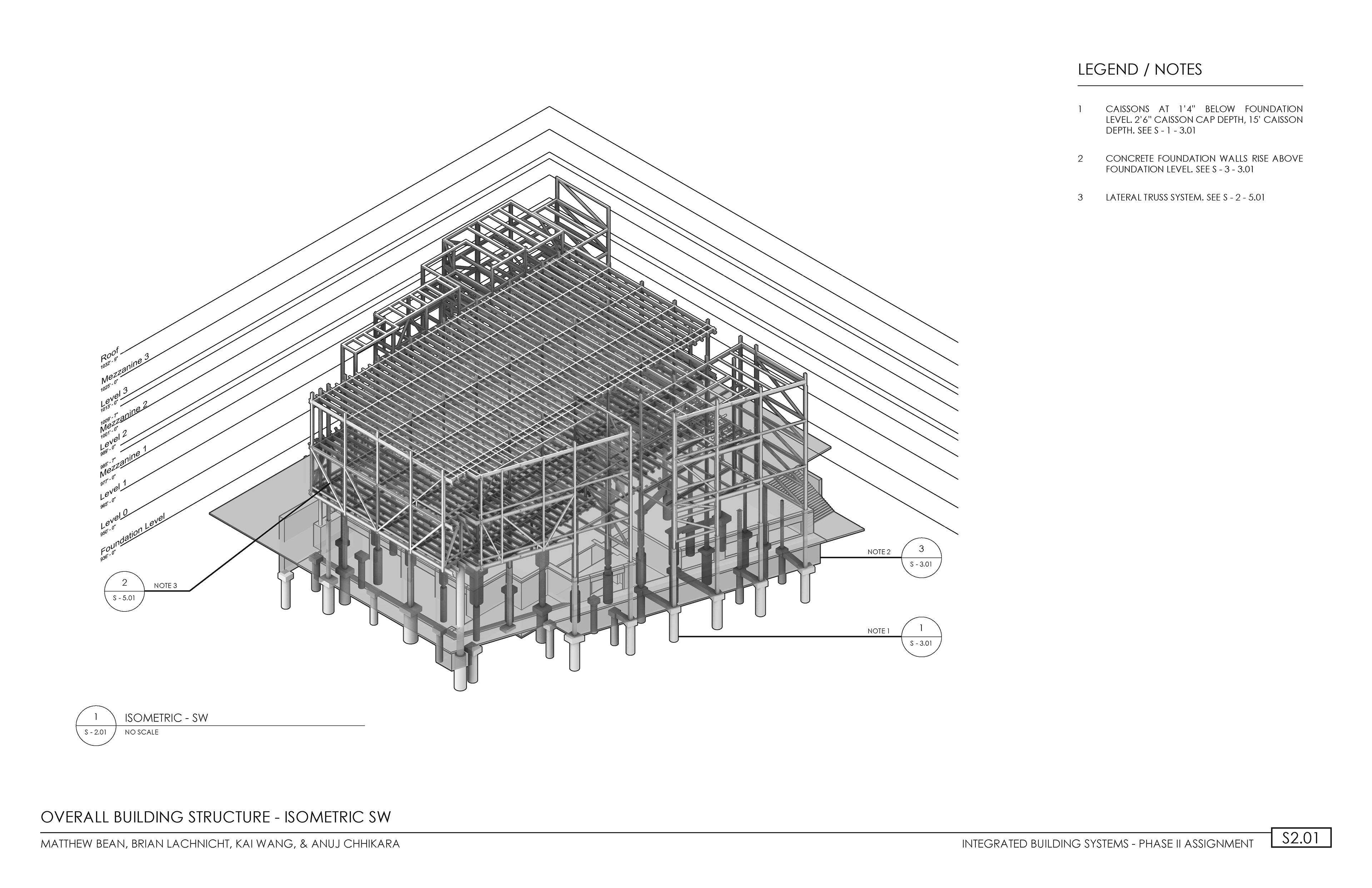

The final deliverables for the project saw the team compile our work into a properly formatted construction document set featuring several pages of plans, sections, elevations, and isometrics, among other supporting drawings with notes, callouts, and reference marks on each page.
Phase II - Document Set
Phase III - Document Set
